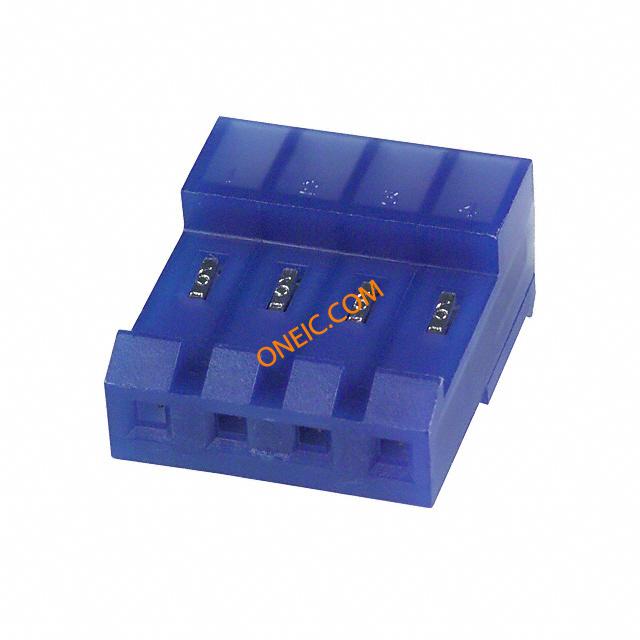

3-640430-4

点击放大查看

3-640430-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings 4 POS RECPT 26 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 26AWG MTA156 Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 CONN ASSY 26AWG BLU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量200

合规参数

RoHSRoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600连接器阻抗刺破式压接 (IDC)
最大额定电流7 A

机械参数

颜色Blue间距3.96 mm
高度9.02 mm [ .355 in ]长度15.85 mm [ .624 in ]
密封型Not Sealed包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色蓝色
电缆类型分离式导线导线线规26
端接方式IDT触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
引脚数4排数1
封装形式Receptacle壳体镀层Nickel
外壳材料（壳体）标准外形插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数4
接触件端接Locking Lance绝缘直径2.41 mm [ .095 in ]
位数4兼容外壳尺寸（如TM-700等）MTA .156 公端
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End
产品子类型Receptacles / Sockets - Housings安装类型Closed End
输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
3-640430-4
在线文档
3-640430-4?RQPN=3-640430-4
