点击放大查看
641207-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS R/A .156 30GOLD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触点数 | 4 | 位数 | 4 |
| 接触长度 - 配合 | 0.400" (10.16mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 加载位置数 | All | ||
相关型号
640434-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings CLOSED W/O TABS 4P Natural 24 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 24AWG MTA156 Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 CONN ASSY 24AWG WHT

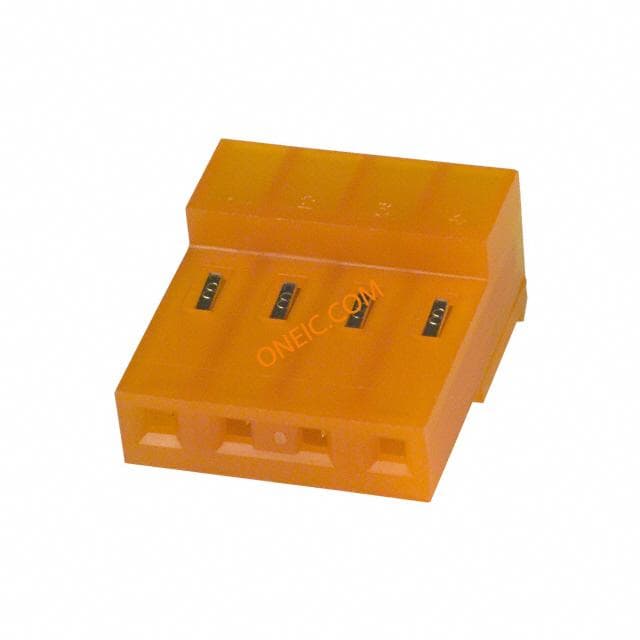

640431-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 18AWG MTA156 Headers & Wire Housings CLOSED W/O TABS 4P Orange 18 AWG Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 CONN ASSY 18AWG ORA
640605-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 20AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 4P Yellow 20 AWG
3-644461-4
te connectivity / amp
Conn IDC Connector RCP 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 18AWG MTA156 Headers & Wire Housings 04P MTA156 CONN ASSY 18AWG LF 04P MTA156 CONN ASSY 18AWG LF 04P MTA156 CONN ASSY 18AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-640434-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 24AWG MTA156 Headers & Wire Housings 4 POS RECPT 24 AWG CLOSED END 3-640434-4 04P MTA156 CONN ASSY 24AWG WHT
3-640481-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG .156 BLUE
3-640604-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 18AWG MTA156 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 CONN ASSY 18AWG LF
3-644082-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 18AWG MTA-156 Headers & Wire Housings 04P MTA156 CONN ASSY 18AWG LF 04P MTA156 CONN ASSY 18AWG LF 04P MTA156 CONN ASSY 18AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-644470-4
te connectivity / amp
Conn IDC Connector RCP 4 POS 3.96mm IDT RA Cable Mount CONN RECEPT 4POS 20AWG MTA156 Headers & Wire Housings 04P MTA156 CONN ASSY 20AWG LF 04P MTA156 CONN ASSY 20AWG LF 04P MTA156 CONN ASSY 20AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-644471-4
te connectivity / amp
Conn IDC Connector RCP 4 POS 3.96mm IDT RA Cable Mount CONN RECEPT 4POS 22AWG MTA156 Headers & Wire Housings 04P MTA156 CONN ASSY 22AWG LF 04P MTA156 CONN ASSY 22AWG LF 04P MTA156 CONN ASSY 22AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-644567-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 18AWG MTA-156
640477-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 18AWG MTA-156 04 CIR MTA .156 ASSY ON TAPE 04 CIR MTA .156 ASSY ON TAPE Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-640608-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 26AWG MTA156 Headers & Wire Housings 04P MTA156 CONN ASSY 26AWG LF 04P MTA156 CONN ASSY 26AWG LF
3-644501-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG MTA-156 Headers & Wire Housings 04P MTA156 CONN ASSY 22AWG LF 04P MTA156 CONN ASSY 22AWG LF
3-644566-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG MTA-156 Headers & Wire Housings 04P MTA156 CONN ASSY 22AWG LF 04P MTA156 CONN ASSY 22AWG LF
3-644570-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 18AWG MTA-156 Headers & Wire Housings 04P MTA156 CONN ASSY 18AWG LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 CONN ASSY 18AWG LF
3-644791-4
te connectivity / amp
Conn IDC Connector RCP 4 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG .156 RED
644471-4
TE Connectivity / AMP
Headers & Wire Housings FEED THRU W TAB 4P Red 22 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 22AWG MTA156
3-640607-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 24AWG MTA156 Headers & Wire Housings 04P MTA156 CONN ASSY 24AWG LF 04P MTA156 CONN ASSY 24AWG LF 04P MTA156 CONN ASSY 24AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-640606-4
te connectivity / amp
Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 22AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 4P Red 22 AWG 04P MTA156 CONN ASSY 22AWG LF 04P MTA156 CONN ASSY 22AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
