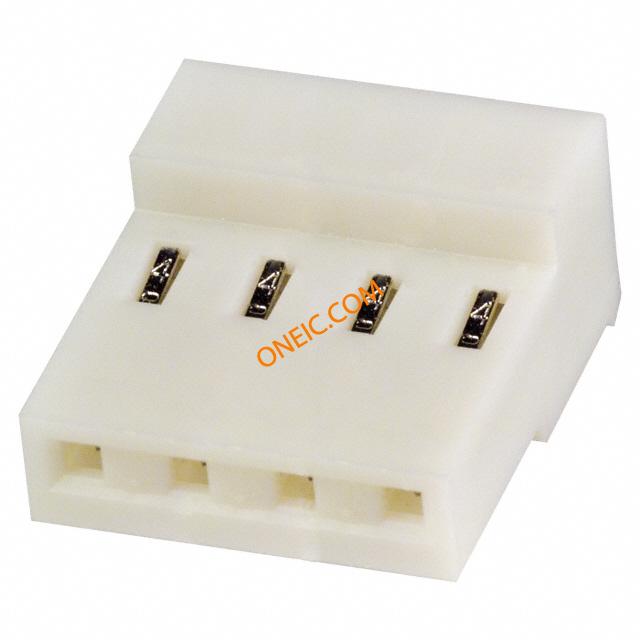

640434-4

点击放大查看

640434-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings CLOSED W/O TABS 4P Natural 24 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 24AWG MTA156 Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 CONN ASSY 24AWG WHT
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量250

合规参数

RoHSNoUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
连接器阻抗IDC最大额定电流7 A

机械参数

颜色White间距3.96 mm
高度9.02 mm [ .355 in ]长度11.89 mm [ .468 in ]
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规24端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin-Lead Over Nickel
触点时序Without安装样式Wire
排数1外壳材料（壳体）标准
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon包装数量250
面板安装类型不带电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数4端接表面处理带有
接触件端接Locking Lance绝缘直径2.41 mm [ .095 in ]
位数4兼容外壳尺寸（如TM-700等）MTA .156 头
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局同轴表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End
可密封否产品子类型Receptacles / Sockets - Housings

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]
