3-641149-4

点击放大查看

3-641149-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 20AWG MTA-156 Headers & Wire Housings 04P MTA156 ASY 20AWG YEL LF 04P MTA156 ASSY 20AWG YEL LF 04P MTA156 ASSY 20AWG YEL LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格250产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量250

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600连接器阻抗IDC
最大额定电流7 A

机械参数

颜色Yellow间距3.96 mm
高度9.02 mm [ .355 in ]长度15.85 mm [ .624 in ]
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规20 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Gold Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
壳体镀层Nickel外壳材料（壳体）标准
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon包装数量250
面板安装类型不带电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数4端接表面处理带有
绝缘直径2.41 mm [ .095 in ]位数4
兼容外壳尺寸（如TM-700等）MTA .156 头安装孔直径不带
接触件表面处理 - 配合锡典型触点布局同轴
表面贴装焊盘尺寸Without接触镀层厚度15µin (0.38µm)
静电放电屏蔽带有护套（绝缘）厚度1.27 – 1.77 µm, 50 – 69.685 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-156
产品特性Closed End可密封否
产品子类型Connector Assemblies

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
3-641149-4?RQPN=3-641149-4

相关型号

644759-4

644759-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD

详情
647141-4

647141-4

te connectivity / amp

Conn Shrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS R/A .156 GOLD

详情
644753-4

644753-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Header Vertical 4 way Pin MTA-156 Headers & Wire Housings HDR 04P VRT F-LOCK Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HeaderVertical4wayPinMTA-156 TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY RN STR F/L

¥0.8616
详情
643995-4

643995-4

te connectivity / amp

Conn IDC Connector M 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS 22AWG MTA-156 Headers & Wire Housings 04P MTA156 PSTD CONN CE 22AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 4Mating Type = PlugConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 PSTD CONN CE 22AWG

¥7.5480
详情
647476-4

647476-4

te connectivity / amp

Conn IDC Connector M 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS 18AWG BLUE .156 Headers & Wire Housings 04P MTA156 PSTD CONN CE 18AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 4Mating Type = PlugConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 PSTD CONN CE 18AWG

¥8.8400
详情
644751-4

644751-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings 4P HDR ASSY R/A Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY R/A

¥1.1091
详情
640389-4

640389-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR RA 4P Square post tin Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 4WAY Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 4P, 640389-4, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY SQ R/A F/L

¥1.3097
详情
644760-4

644760-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD

详情
暂无图片

641202-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS STR .156 30GOLD Headers & Wire Housings 04P MTA156 HDR ASSY PL ST 30AU 04P MTA156 HDR ASSY PL ST 30AU 04P MTA156 HDR ASSY PL ST 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.3728
详情
640385-4

640385-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 4P Square post tin Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY SQ R/A

¥0.8636
详情
641522-4

641522-4

te connectivity / amp

Conn IDC Connector M 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS 18AWG ORANGE .156 Headers & Wire Housings 04P MTA156 POST CON ASSY ORNG Conn IDC Connector M 4 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 4Mating Type = PlugConnector Type = Feed ThruWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 POST CON ASSY ORNG

¥3.4680
详情
3-641210-4

3-641210-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR RA 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM 04P MTA156 HDR FLRA FB 30AU LF

¥6.1472
详情
641524-4

641524-4

te connectivity / amp

Conn IDC Connector PL 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS 22AWG MTA-156 Headers & Wire Housings 04P MTA156 POST CON ASSY RED MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Posted Wire-to-Wire Connectors4 PositionsMating Type = PlugConnector Type = Feed ThruWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 POST CON ASSY RED

¥2.8560
详情
644752-4

644752-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Headers & Wire Housings 04P MTA156 HDR ASSY Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM MTA-156HEADER-TIN,04PMTA156HDRASSYSQSTRF/L 04P MTA156 HDR ASSY SQ STR F/L

¥0.7616
详情
644767-4

644767-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD 04P MTA156 HDR ASSY FL ST 15AU 04P MTA156 HDR ASSY FL ST 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.4680
详情
641120-4

641120-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD Headers & Wire Housings 04P MTA156 HDR ASSY FL/ST 15AU Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.5360
详情

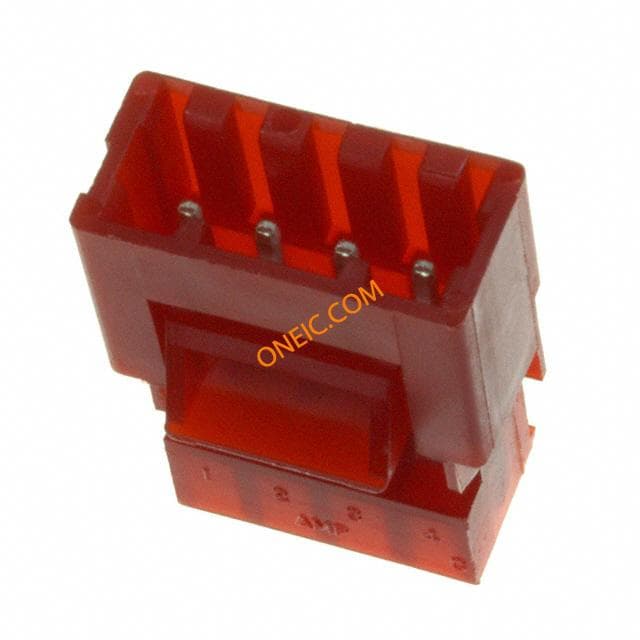

3-641437-4
