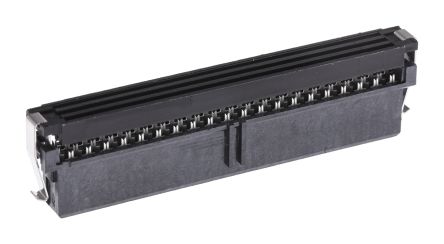

3-111196-3

点击放大查看

3-111196-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 80 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 80POS .050X.100" IDC Ribbon cable conn.rcpt.80 way,1.27mm,blk Headers & Wire Housings 80 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 80 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 80Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, 80WAY AMP-LATCHSystem50Receptacle,80Pos.,DualRow,forRibbonCable TE Connectivity AMP-LATCH System 50 系列 2行 80路 1.27mm节距 直角 电缆安装 母 IDC 连接器 80 RCPT SYSTEM 50 30 DPLX
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量20

合规参数

RoHSLead free / RoHS Compliant海关税号85369010

电气参数

量程（°/s）:TE - AMPMODU System 50 Series额定电压30 V ac
开关功能Latch接触电阻30 mohm
最大额定电流0.5A绝缘电阻5000 MOhms
最小供电电压30VAC

机械参数

颜色Black深度6.45 mm
间距1.27 mm高度14.73 mm
重量0.002包装方式Bulk
导线类型Ribbon Cable导线线规30-32 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket外壳颜色Black
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Gold Over Nickel紧固类型Latch Lock
安装样式Wire排数2
触头材料Phosphor Bronze壳体材料Liquid Crystal Polymer
总长度57.4 mm电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
连接器颜色:Black触点数80
接触件端接:IDC / IDT位数80
接触镀层厚度30µin (0.76µm)第一连接器安装类型:Cable

产品信息

类型IDC Connector连接器性别RCP
系列AMP产品特性Feed Through
产品子类型Receptacles / Sockets - Housings

环境参数

工作温度+105°C

文档与媒体

在线文档
3-111196-3?RQPN=3-111196-3
