首页产品分类连接器解决方案板对板连接器板对板连接器5-104068-6
5-104068-6

点击放大查看

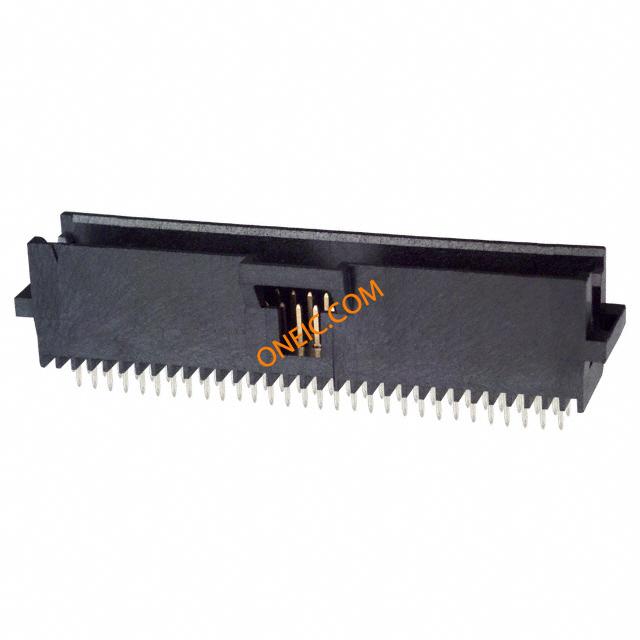

5-104068-6

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 60POS 30AU Headers & Wire Housings 60 POS HDR VERT DUAL ROW Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 60Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYSTEM 50 HDR DRST SHRD
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量11

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

输入端150 – 250额定电压30 VAC
供电电压30额定交流电压30
连接器阻抗制动器闭锁频率稳定度不带
击穿电压500最大额定电流1
绝缘电阻5,000最小供电电压30VAC
保护额定电压（VPR）500 V

机械参数

颜色Black深度8.73 mm
间距1.27 mm高度9.9 mm
底座类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
引脚样式圆形, 圆形排间距0.100" (2.54mm)
端接方式Solder引脚间距0.100" (2.54mm)
外壳颜色Black安装类型Vertical
连接器类型Shrouded接触镀层Gold Over Nickel
安装样式Thru Hole排数2
外壳材料（壳体）2- 面高度（英寸）0.390" (9.91mm)
插入件材料铜合金锁定特性带有
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度44.29 mm包装数量Tube
面板安装类型通孔端接样式Through Hole
外径.381 mm [ .015 in ]板面高度0.125" (3.18mm)
触点数60端接表面处理带罩
位数60触头长度-柱0.390" (9.91mm)
配接堆叠高度0.450" (11.43mm)安装孔直径带有
接触长度 - 配合0.125" (3.18mm)端子柱长度2.54 [0.100]
接触镀层厚度30µin (0.76µm)堆叠高度（配合）0.450" (11.43mm)
静电放电屏蔽不带每排/每行位置数All

产品信息

备注**Circuit identification feature omitted on 10 and 12 position headers.类型Shrouded Header
连接器性别HDR系列AMPMODU System 50
钥匙类型否制造商全称AMP
产品子类型Header Assembly选择性装载否
输出配置Through Hole加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65C to 105C封装热阻1.397 mm [ .055 in ]

文档与媒体

在线文档
5-104068-6?RQPN=5-104068-6

相关型号

147378-7

147378-7

te connectivity / amp

Conn Socket Strip RCP 80 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 80POS DL ROW SMD GOLD Board to Board & Mezzanine Connectors 80 SYS50 SMT RCP DR SHD W/O HD 80 SYS50 SMT RCP DR SHD W/O HD 80 SYS50 SMT RCP DR SHD W/O HD Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU

¥55.9082
详情
104078-7

104078-7

te connectivity / amp

Conn Socket Strip RCP 80 POS 2.54mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 80POS VERT DUAL 30AU Board to Board & Mezzanine Connectors SYSTEM 50 RECPT 80P 660 Conn Socket Strip RCP 80 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYSTEM 50 RCPT ASSY DRST

¥55.9640
详情
5-104550-7

5-104550-7

te connectivity / amp

Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050" GOLD SMD Board to Board & Mezzanine Connectors 60 SYS50 SURFMNT DRST RCPT SN Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2行 60路 垂直 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 60 SYS50 SURFMNT DRST RCPT SN

¥45.3000
详情
5-104078-7

5-104078-7

te connectivity / amp

Conn Socket Strip RCP 80 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 80POS VERT DUAL 30AU Board to Board & Mezzanine Connectors 80 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 80 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 80Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYSTEM 50 RCPT ASSY DRST SN

¥72.4800
详情
5-147378-6

5-147378-6

te connectivity / amp

Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 60POS DUAL SMD GOLD Board to Board & Mezzanine Connectors 60 SYS50 SMT RCP DR SHD SN 60 SYS50 SMT RCP DR SHD SN 60 SYS50 SMT RCP DR SHD SN Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU

¥63.4200
详情
3-111196-3

3-111196-3

te connectivity / amp

Conn IDC Connector RCP 80 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 80POS .050X.100" IDC Ribbon cable conn.rcpt.80 way,1.27mm,blk Headers & Wire Housings 80 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 80 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 80Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, 80WAY AMP-LATCHSystem50Receptacle,80Pos.,DualRow,forRibbonCable TE Connectivity AMP-LATCH System 50 系列 2行 80路 1.27mm节距 直角 电缆安装 母 IDC 连接器 80 RCPT SYSTEM 50 30 DPLX

¥63.4200
详情
6-487937-0

6-487937-0

te connectivity / amp

Conn Housing RCP 60 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 60POS.050 DUAL W/LATCH FFC & FPC Connectors 060 HOUSING FFC 50CL DR LATCH Conn Housing RCP 60 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 60Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 060 HOUSING FFC 50CL DR LATCH

¥12.2400
详情
1-111196-5

1-111196-5

te connectivity / amp

Conn IDC Connector RCP 80 POS 1.27mm IDT RA Cable Mount Headers & Wire Housings 80P RECEPT DUAL ROW 300 .050 X .100 AMPMODU System 50 CONN RECEPT 80POS .050X.100 IDC Conn IDC Connector RCP 80 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 80Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 080 RCPT SYSTEM 50 30 DPLX

¥48.7560
详情
