104078-7

点击放大查看

104078-7

制造商
TE Connectivity Ltd.
描述Conn Socket Strip RCP 80 POS 2.54mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 80POS VERT DUAL 30AU Board to Board & Mezzanine Connectors SYSTEM 50 RECPT 80P 660 Conn Socket Strip RCP 80 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYSTEM 50 RCPT ASSY DRST
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Board to Board & Mezzanine Connectors
标准包装数量Rail / Tube工厂包装数量10

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认可国家CSA LR7189, UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 V供电电压30
输入电阻5000额定交流电压30
击穿电压500最大额定电流4
绝缘电阻5,000

机械参数

颜色Black间距2.54 mm
高度8.89 mm [ .35 in ]包装方式Tube
壳体颜色黑色排间距0.100" (2.54mm)
端接方式Solder外壳颜色Black
安装类型Vertical连接器类型Receptacle
接触镀层Gold Over Nickel法兰特征Without
安装样式Thru Hole排数2
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Thermoplastic安装特性压具柱体
包装数量Tube面板安装类型通孔
端接样式Through Hole板面高度0.350" (8.89mm)
触点数80位数80
兼容外壳尺寸（如TM-700等）插头组件触头长度-柱2.54 mm [ .1 in ]
表面贴装焊盘尺寸Without端子柱长度2.54 [0.100]
接触镀层厚度30µin (0.76µm)

产品信息

类型Socket Strip连接器性别RCP
系列AMPMODU SYSTEM 50制造商全称AMP
产品子类型Receptacle Assembly装配配置Board Standoff
加载位置数All

环境参数

温度范围-65 – +105工作温度-65 – 105

文档与媒体

在线文档
104078-7?RQPN=104078-7

相关型号

1-103916-6

1-103916-6

te connectivity / amp

Conn Unshrouded Header HDR 80 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HDR 80POS BRD/BRD VERT PCB Headers & Wire Housings 80 SYSTEM 50 HDR DRST UNSHRD Conn Unshrouded Header HDR 80 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 80Number of Rows = DualNot ShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYSTEM 50 HDR DRST UNSHRD

¥38.0120
详情
104477-6

104477-6

te connectivity / amp

Conn Shrouded Header HDR 80 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 80POS DL R/A SHRD AU Headers & Wire Housings 80 SYSTEM 50 HDR DRRA SHRD .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 80Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYSTEM 50 HDR DRRA SHRD

¥75.3440
详情

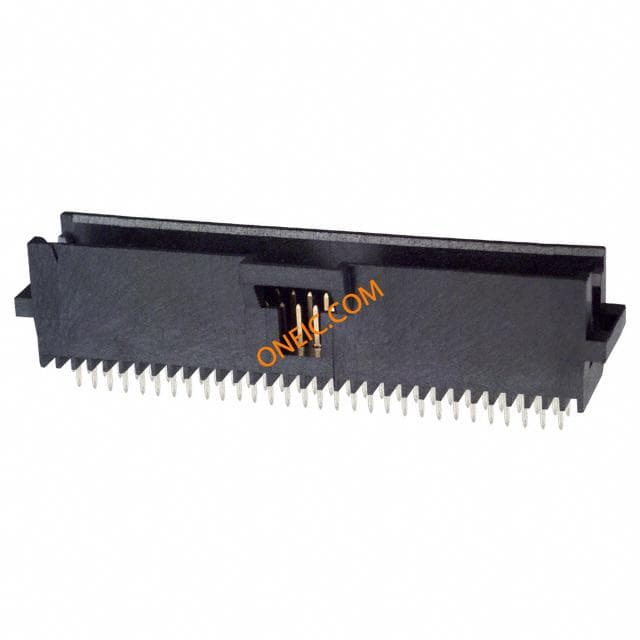

5-104068-6
