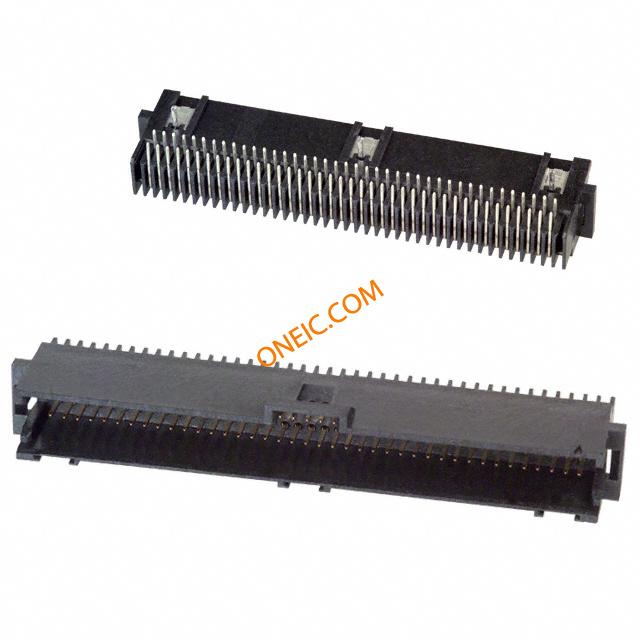

5-104069-3

点击放大查看

5-104069-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 80 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 80POS .050" R/A GOLD TE Connectivity AMPMODU Series 1.27, 2.54mm Pitch 80 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 80 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 80 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 80Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU SYS50SHRDHDRASSY,80SYS50HDRDRRASHRDSN TE Connectivity AMPMODU System 50 系列 1.27 mm, 2.54 mm节距 80路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 80 sys 50 hdr drra shrd sn
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量9

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 V ac供电电压30
额定交流电压30连接器阻抗制动器闭锁
击穿电压500最大额定电流1A
绝缘电阻5,000保护额定电压（VPR）500 V

机械参数

颜色Black间距1.27 mm
底座类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
引脚样式圆形方向直角
排间距0.100" (2.54mm)稳定剂Without
端接方式Solder引脚间距0.100" (2.54mm)
第二连接器With外壳颜色Black
安装类型Right Angle连接器类型Shrouded
接触镀层Gold Over Nickel安装样式Thru Hole
排数2外壳材料（壳体）2- 面
高度（英寸）0.350" (8.89mm)插入件材料铜合金
触头材料Phosphor Bronze壳体材料Thermoplastic
安装特性压具柱体包装数量Tube
面板安装类型通孔端接排数焊接
端接样式Through Hole外径.381 mm [ .015 in ]
板面高度0.125" (3.18mm)触点数80
端接表面处理带罩位数80
触头长度-柱0.350" (8.89mm)安装孔直径带有
接触长度 - 配合0.125" (3.18mm)端子柱长度2.54 [0.100]
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带
每排/每行位置数All端接镀层厚度150 – 250

产品信息

备注Note 1: Hold down posts located as shown for 16 through 100 position headers.;类型Shrouded Header
连接器性别HDR系列AMPMODU
覆盖范围覆盖钥匙类型否
制造商全称AMP产品子类型Header Assembly
选择性装载No输出配置Through Hole, Right Angle
加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65 – 105封装热阻1.397 mm [ .055 in ]

文档与媒体

在线文档
5-104069-3?RQPN=5-104069-3
