104549-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 80 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 80 POS STR .050 SMT Headers & Wire Housings 80 SY50 SURFMNT SHRD 324 Conn Shrouded Header HDR 80 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 80Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYS50 SURFMNT HDR DRST SHRD |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 9 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| 标准编号 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 VAC | 供电电压 | 30 |
| 额定交流电压 | 30 | 连接器阻抗 | 镍打底镀锡铅 |
| 击穿电压 | 500 | 最大额定电流 | 1 |
| 绝缘电阻 | 5,000 | 保护额定电压（VPR） | 500 VAC |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 镀层 | Tin-Lead over Nickel | 底座类型 | 带有 |
| 锁定类型 | 带有 | 包装方式 | Tube |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 稳定器 | 不带 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Surface Mount |
| 排数 | 2 | 外壳材料（壳体） | 2- 面 |
| 电路板厚度 | 1.57 | 高度（英寸） | 0.435" (11.05mm) |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic Glass Reinforced | 总长度 | .05 |
| 刀片材料 | Copper Alloy | 安装特性 | 压具柱体 |
| 包装数量 | Tube | 面板安装类型 | 通孔 |
| 端接样式 | SMD | 第一连接器类型 | 带罩 |
| 外径 | .381 mm [ .015 in ] | 触点数 | 80 |
| 端接表面处理 | 带有 | 位数 | 80 |
| 安装孔直径 | 带有 | 接触长度 - 配合 | 0.125" (3.18mm) |
| 端子柱长度 | 2.54 [0.100] | 接触镀层厚度 | 30µin (0.76µm) |
| 螺钉材料 - 镀层 | 铜合金 | 静电放电屏蔽 | 不带 |
| 第一连接器安装特征 | 否 | 接触件镀层 - 插柱（配合端） | 哑光 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU System 50 | 产品特性 | Board Lock |
| 钥匙类型 | 否 | 制造商全称 | AMP |
| 产品子类型 | Header Assembly | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度范围 | -65 â +105 |
| 防护等级 | 带罩 | 工作温度 | -65 – 105 |
文档与媒体
相关型号
147378-7
te connectivity / amp
Conn Socket Strip RCP 80 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 80POS DL ROW SMD GOLD Board to Board & Mezzanine Connectors 80 SYS50 SMT RCP DR SHD W/O HD 80 SYS50 SMT RCP DR SHD W/O HD 80 SYS50 SMT RCP DR SHD W/O HD Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU
104078-7
te connectivity / amp
Conn Socket Strip RCP 80 POS 2.54mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 80POS VERT DUAL 30AU Board to Board & Mezzanine Connectors SYSTEM 50 RECPT 80P 660 Conn Socket Strip RCP 80 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYSTEM 50 RCPT ASSY DRST

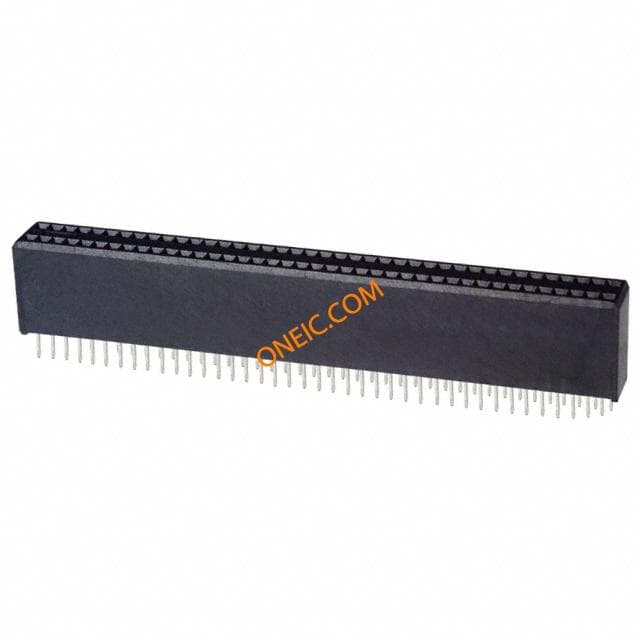

5-104078-7
te connectivity / amp
Conn Socket Strip RCP 80 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 80POS VERT DUAL 30AU Board to Board & Mezzanine Connectors 80 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 80 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 80Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYSTEM 50 RCPT ASSY DRST SN
8-487938-0
te connectivity / amp
Conn Housing RCP 80 POS 1.27mm Crimp ST Cable Mount FFC & FPC Connectors 080 HOUSING FFC 50CL DR .050 X .100 AMPMODU System 50 CONN RECEPT 80POS .050 DUAL ROW

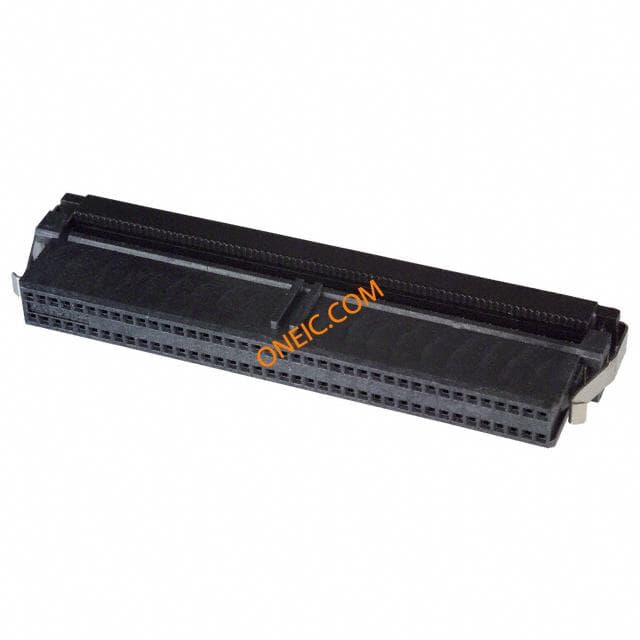

3-111196-3
