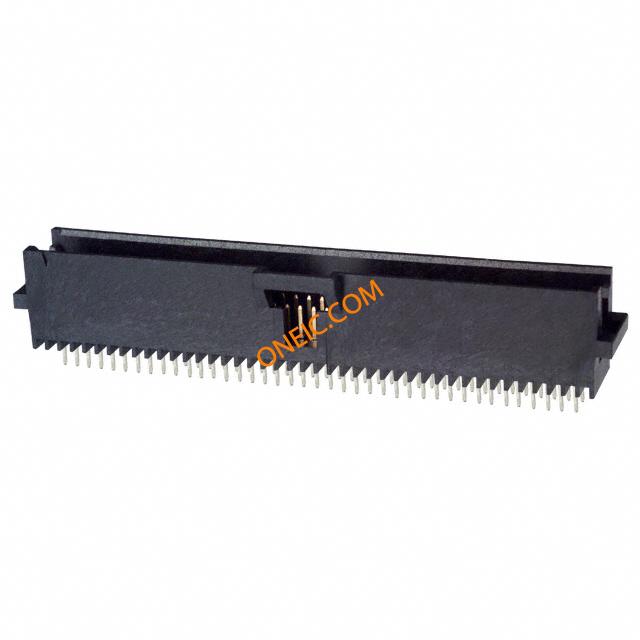

1-104068-6

点击放大查看

1-104068-6

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 80 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 80POS 30AU Headers & Wire Housings SYSTEM 50 HDR 80P 756 Conn Shrouded Header HDR 80 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 80Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 80 SYSTEM 50 HDR DRST SHRD
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量9

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认可国家CSA LR7189, UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
保护特性With材料阻燃等级UL 94V-0

电气参数

额定电压30 VAC供电电压30
额定交流电压30连接器阻抗制动器闭锁
击穿电压500最大额定电流1
绝缘电阻5,000最小供电电压30VAC
保护额定电压（VPR）500 V

机械参数

颜色Black深度8.73 mm
间距1.27 mm高度9.9 mm
底座类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
排间距0.100" (2.54mm)稳定剂Without
端接方式Solder引脚间距0.100" (2.54mm)
第二连接器With触点形状Round
外壳颜色Black安装类型Vertical
连接器类型Shrouded接触镀层Gold Over Nickel
安装样式Thru Hole排数2
外壳材料（壳体）2- 面高度（英寸）0.390" (9.91mm)
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Thermoplastic总长度56.99 mm
包装数量Tube面板安装类型通孔
端接样式Through Hole外径.381 mm [ .015 in ]
板面高度0.125" (3.18mm)触点数80
端接表面处理Matte Tin-Lead位数80
触头长度-柱0.390" (9.91mm)配接堆叠高度0.450" (11.43mm)
安装孔直径带有接触长度 - 配合0.125" (3.18mm)
端子柱长度2.54 [0.100]接触镀层厚度30µin (0.76µm)
堆叠高度（配合）0.450" (11.43mm)静电放电屏蔽不带
每排/每行位置数All端接镀层厚度150 – 250

产品信息

备注**Circuit identification feature omitted on 10 and 12 position headers.类型Shrouded Header
连接器性别HDR系列AMPMODU System 50
钥匙类型否制造商全称AMP
产品子类型Header Assembly选择性装载No
输出配置Through Hole加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65C to 105C封装热阻1.397 mm [ .055 in ]
