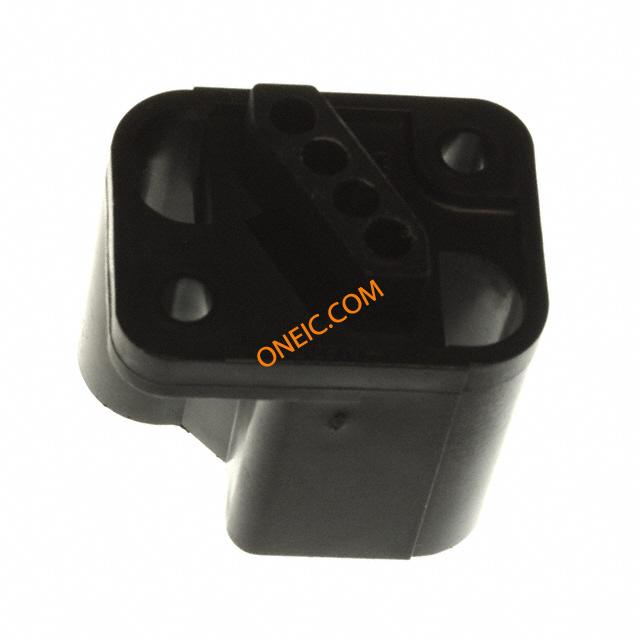

212609-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 5.08mm ST Metrimate Connectors CONN RECEPT 4 POS METRIMATE BLK Housing 4 way pin Metrimate Drawer Power to the Board METRIMATE RECPT 4P Conn Housing RCP 4 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 4ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECEPTHSG,4POSN,METRIMATE TE Connectivity Metrimate 系列 5.08mm 节距 4 路 直 母 压接连接器外壳 RECEPT HSG,4 POSN,METRIMATE |
| 分类 |
商业参数
| 其他名称 | 2126091 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | UL档案号 | E28476 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | 是 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 供电电压 | 600 | 最大额定电流 | 14 A |
机械参数
| 颜色 | Black | 深度 | 1.605in |
| 间距 | 5.08 mm | 宽度 | 1.542in |
| 长度 | 1.19in | 材料（通用） | 聚酯 GF |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 电缆类型 | 分离式导线 | 方向 | 直 |
| 本体尺寸 | .031 – .091 in, .8 – 2.3 mm | 柱间距 | .173 |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing |
| 安装样式 | SMD/SMT | 排数 | 1 |
| 连接器样式 | Drawer | 连接器用途 | Drawer |
| 总宽度 | 1.19 | 壳体材料 | Thermoplastic - GF |
| 总长度 | 1.54 | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | 带有 |
| 端接样式 | Screw | 第一触头极性 | Socket (Female) |
| 传感器连接器 | Without | 触点数 | 4 |
| 位数 | 4 | 中心触点表面处理 | 5.08 |
| 兼容外壳尺寸（如TM-700等） | 插头外壳, 硬件 208211-1 或 -4 | ||
产品信息
| 备注 | Positions 1 & 4 should not be used with ground pin. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Metrimate |
| 产品特性 | Mating Guide | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 抽屉总数 | Standard | 其他规格 | No |
| 适用产品/相关产品 | PCB Connector | ||
环境参数
| 工作温度 | -55 – 130 °C [ -67 – 266 °F ] | ||
相关型号
66102-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG GOLD CRIMP Contact male crimp 24-20AWG Multimate Pin & Socket Connectors III+ PIN24-2015 Reel of 4000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+PIN,24-20,15AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,24-20,15AU/FL,STRIP
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
212608-1
te connectivity / amp

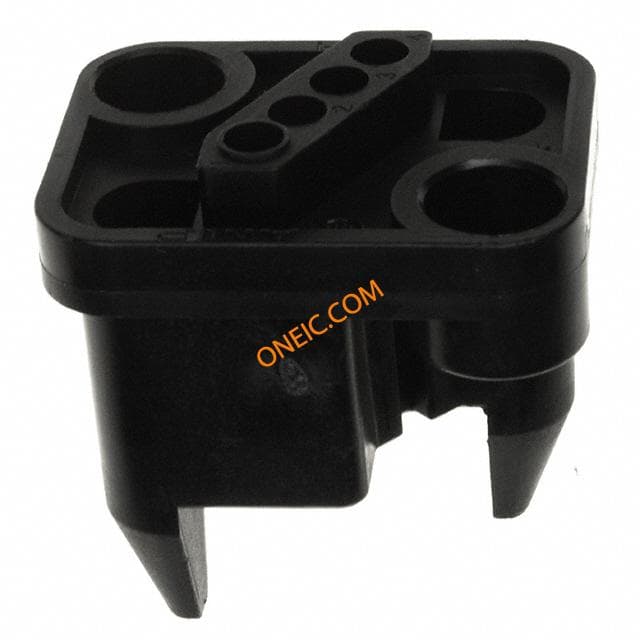

Conn Housing RCP 4 POS 5.08mm ST Panel Mount Metrimate Connectors CONN PLUG 4 POS METRIMATE BLACK Housing 4 way socket Metrimate Drawer Pin & Socket Connectors 4P PLUG HOUSING Conn Housing RCP 4 POS 5.08mm ST Panel Mount Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 4PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, PLUG, PANEL, 4WAY PLUGHSG,4POSN,METRIMATE TE Connectivity Metrimate 系列 5.08mm 节距 4 路 直 公 压接连接器外壳 PLUG HSG,4 POSN,METRIMATE
