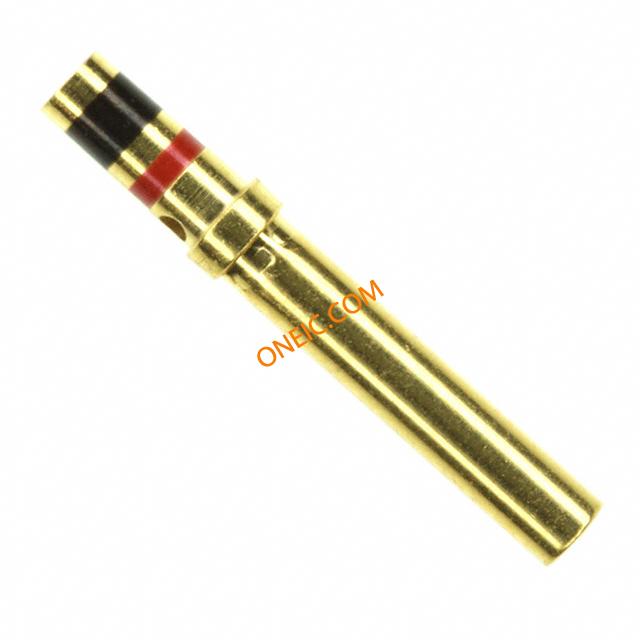

206795-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET 28-26 AWG AMPLIMITE - Aerospace & Military CONN SOCKET 26-28AWG CRIMP GOLD Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Terminate To WireSocketContact Size = 20Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 28-26AWG, CRIMP AMPLI,SKTCONTASSY,SZ20 AMPLIMITE,SKT CONT ASY,SZ 20 |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 认证机构标志 | No |
电气参数
| 输出高/低电流 | No | ||
机械参数
| 深度 | 2.15 mm | 间距 | Not Required mm |
| 重量 | 0 | 直径 | 1.75 |
| 包装方式 | Bulk | 导线线规 | 28-26 |
| 端接方式 | Crimp | 触点形式 | Machined |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 安装类型 | Straight | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Not Required |
| 包装数量 | Loose Piece | 主要材料 | Copper Alloy |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件尾部长度 | 20 |
| 接触件端接 | Crimp | 绝缘直径 | 1.83 [.072] Max. |
| 触点材料 - 配合 | Gold | 线规或范围 - AWG | 0.08-0.15² [28-26] |
| 触点材料 - 镀层 | Gold | ||
产品信息
| 备注 | Contact is color coded. | 类型 | Signal |
| 连接器性别 | SKT | 系列 | 109 |
| 制造商全称 | AMP | 产品子类型 | Contact |
| 端口数 | 1 Port | 其他规格 | Wire/Cable |
| 适用产品/相关产品 | :D Sub Connectors | ||
