点击放大查看

206801-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 25 POS 2.7mm Crimp ST D-Sub Standard Connectors RECEPT ASSY,25 POS,A AMPLIMITE - Aerospace & Military Conn Housing RCP 25 POS Crimp ST Panel Mount Conn Housing RCP 25 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 25Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE RECEPT ASY,25 POS
分类	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	311P409-3S-B-15	产品类别	D-Sub Standard Connectors
标准包装数量	Bulk

合规参数

RoHS	RoHS Compliant	无铅定义	Wave solder capable to 260Â°C / Wave solder capable to 240Â°C / Wave solder capabl
RoHS/ELV合规状态	RoHS compliant / ELV compliant	认证机构标志	Yes

电气参数

连接器阻抗

连接器类型 - 电压输入

机械参数

间距	2.7 mm	外形尺寸(长x宽)	3
材料（通用）	Copper Alloy	包装方式	包装
外壳尺寸	3	触点尺寸	20
触头类型	Crimp Snap-in	非磁性	Yes
外壳表面处理	金	安装类型	Straight
外壳镀层	Gold	端子尺寸	20
连接器类型	母端	安装样式	Wire
排数	2	外壳材料（壳体）	Brass
连接器样式	Receptacle	触头材料	Brass
壳体材料	黄铜	连接器 - 电缆	否
端接样式	Crimp	第一触头极性	Socket
触点数	25	位数	25
衬套/护套类型	No	安装孔直径	3.91
触点材料 - 柱	铜合金

产品信息

类型	Housing	连接器性别	RCP
系列	109	密度	Standard
排列方式	MS18275-1	制造商全称	AMP
产品子类型	Connector	其他规格	Wire/Cable
设备部件号	311P409-3S-B-15

文档与媒体

在线文档

206801-1?RQPN=206801-1

相关型号

211640-4

te connectivity / amp

Conn D-Subminiature PL 25 POS Crimp ST Panel Mount 25Terminal 1Port D-Sub Standard Connectors GMT ASY PLUG 25 POS AMPLIMITE Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG 25POS CRIMP Conn Housing PL 25 POS Crimp ST Cable Mount Conn Housing PL 25 POS Crimp ST Cable Mount Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub GMT ASY,PLUG,25 POS,AMPLIMITE

¥461.3120

详情

206795-3

te connectivity / amp

Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET 28-26 AWG AMPLIMITE - Aerospace & Military CONN SOCKET 26-28AWG CRIMP GOLD Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Terminate To WireSocketContact Size = 20Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 28-26AWG, CRIMP AMPLI,SKTCONTASSY,SZ20 AMPLIMITE,SKT CONT ASY,SZ 20

¥15.3000

详情

206800-1

te connectivity / amp

Conn Housing PL 25 POS Crimp ST Panel Mount D-Sub Standard Connectors PLG ASSY,25 POS,AMPL AMPLIMITE - Aerospace & Military Conn Housing PL 25 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 25Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLG ASSY,25 POS,AMPLIMITE

¥423.9120

详情

暂无图片

211640-1

te connectivity / amp

HD109 25 POS GMT ASY PLG HSG D-Sub Standard Connectors HD109 25 POS GMT ASY PLG HSG CONN D-SUB PLUG 25POS SER 109

¥382.4116

详情

206793-1

te connectivity / amp

Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET 24-20 AWG AMPLIMITE - Aerospace & Military SZ 20,SOCKET, NON-MAG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Terminate To WireSocketContact Size = 20Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 24-20AWG, CRIMP SZ20,SOCKET,NON-MAG

¥9.2480

详情

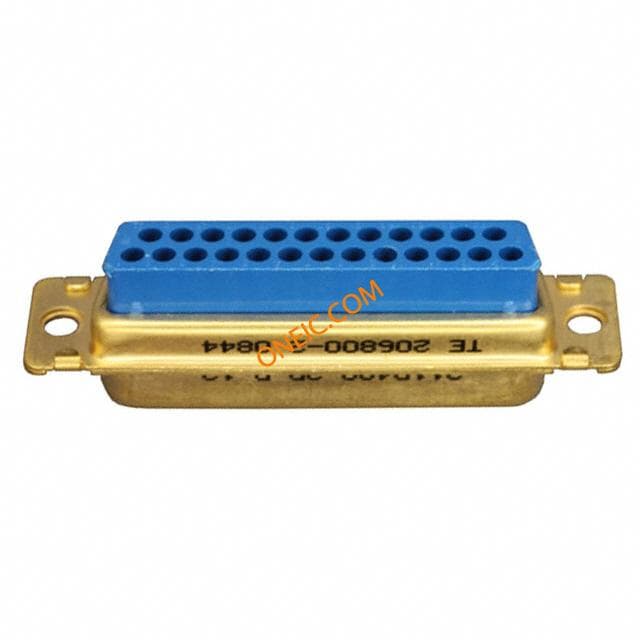

206800-2
