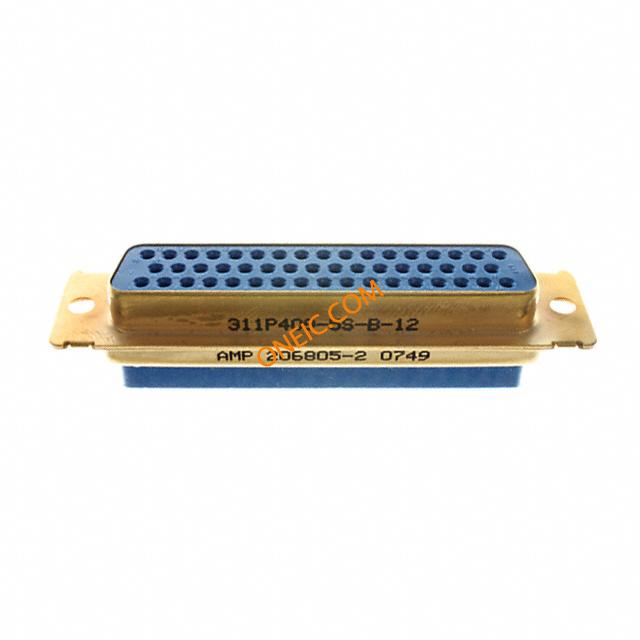

点击放大查看
206805-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 50 POS 2.7mm Crimp ST D-Sub Standard Connectors RECEPT ASSY,50 POS,A AMPLIMITE - Aerospace & Military CONN D-SUB RECEPT 50POS CRIMP Conn Housing RCP 50 POS 2.7mm Crimp ST Product Highlights:ConnectorProduct Series = 109Housing Gender = ReceptacleAccepts Contact Gender = SocketDensity = StandardSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONNECTOR, HOUSING, D SUB, STANDARD, 50POS, RCPT Conn;D-Sub;CableSocket;50Pos;STR;109Series;Crimp;20AWG AMPLIMITE RECEPT ASY,50 POS, |
| 分类 |
商业参数
| 零件号别名 | 311P409-5S-B-12 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器阻抗 | No | 连接器类型 - 电压输入 | No |
机械参数
| 深度 | 16.68 mm | 间距 | 2.7 mm |
| 高度 | 15.36 mm | 重量 | 0 |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 外壳尺寸 | 5 | 导线线规 | 20 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Crimp Snap-in | 非磁性 | Yes |
| 安装类型 | Straight | 外壳镀层 | Gold |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 3 | 外壳材料（壳体） | Brass |
| 连接器样式 | Receptacle | 本体材料 | :Metal |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 66.92 mm | 主要材料 | D-Subminiature |
| 端接样式 | Crimp | 第一触头极性 | Socket |
| 触点数 | 50 | 介电材料 | Polyester |
| 位数 | 50 | 外壳尺寸-插件 | :5 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 |
| 外壳镀层厚度 | 50µin (1.27µm) | 外壳材料及表面处理 | Brass, Gold Plated |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 109 |
| 密度 | Standard | 制造商全称 | AMP |
| 产品子类型 | Connector | 其他规格 | Wire/Cable |
| 设备部件号 | 311P409-5S-B-12 | 适用产品/相关产品 | :Size 20 Crimp Snap-in Contacts |
环境参数
| 工作温度 | -55C to 125C | ||
