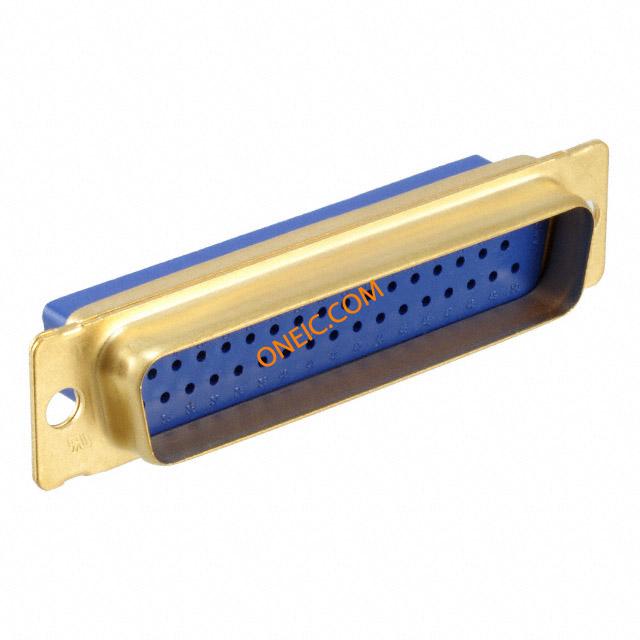

206804-1

点击放大查看

206804-1

制造商
TE Connectivity Ltd.
描述Conn Housing PL 50 POS Crimp ST Panel Mount D-Sub Standard Connectors PLUG ASSY,50 POSN,AM AMPLIMITE - Aerospace & Military CONN D-SUB PLUG 50POS CRIMP Conn Housing PL 50 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 50Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLUG ASSY,50 POSN,AMPLIMITE
分类
嵌入式系统与开发工具嵌入式系统配件DIMM/SO-DIMM/SIMM内存模块
对参数有疑问？问 AI 助手

商业参数

零件号别名311P409-5P-B-15产品类别D-Sub Standard Connectors
标准包装数量Bulk

合规参数

RoHSRoHS Compliant资质认证Yes
无铅定义Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capablRoHS/ELV合规状态RoHS compliant / ELV compliant
其他规格是认证机构标志Yes

电气参数

连接器阻抗No连接器类型 - 电压输入No

机械参数

深度16.76 mm间距2.7 mm
高度15.75 mm外形尺寸(长x宽)5
材料（通用）Copper Alloy包装方式Bulk
外壳尺寸5触点形式Signal
触点尺寸20触头类型Crimp Snap-in
非磁性Yes外壳表面处理金
外壳颜色Blue安装类型Straight
外壳镀层Gold端子尺寸20
连接器类型Plug for Male Contacts接触镀层金
法兰特征Housing/Shell (Unthreaded)安装样式Wire
排数3外壳材料（壳体）Brass
连接器样式Plug插入件材料铜
壳体材料Brass总长度67.31 mm
连接器 - 电缆否端接样式Crimp
第一触头极性Pin触点数50
介电材料Polyester位数50
衬套/护套类型No安装孔直径3.91
外壳镀层厚度50µin (1.27µm)外壳材料及表面处理Brass, Gold Plated
触点材料 - 柱铜合金接触镀层厚度100
外壳尺寸，连接器布局5 (DD, D)

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL系列109
密度Standard排列方式MS18277-1
制造商全称AMP产品子类型Connector
其他规格Wire/Cable输出配置Free Hanging (In-Line)
设备部件号311P409-5P-B-15

环境参数

工作温度-55C to 125C
