206794-4

点击放大查看

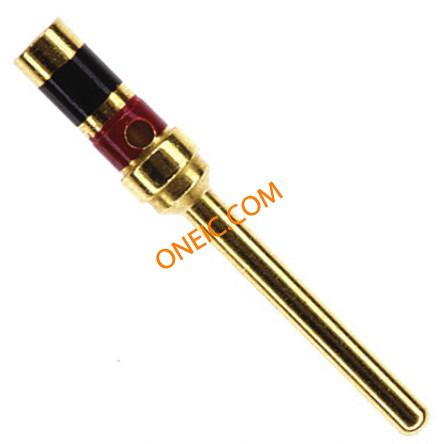

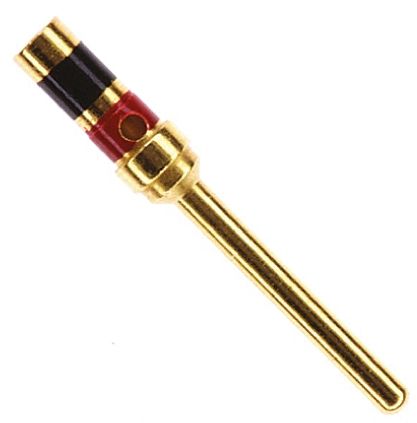

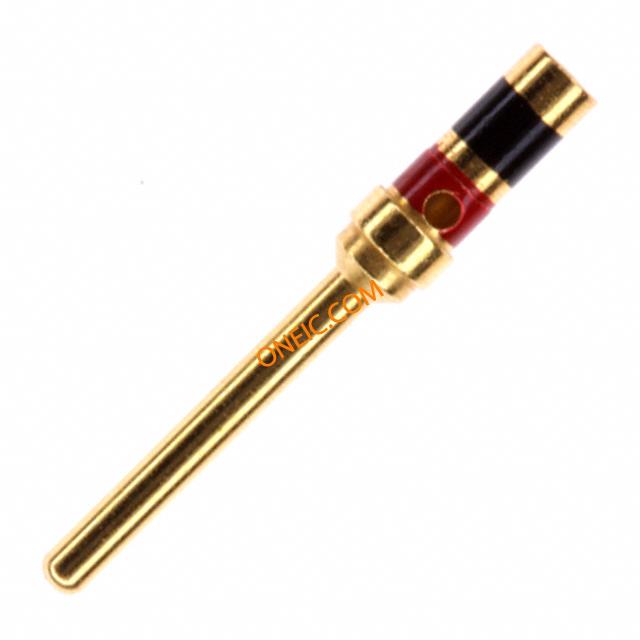

206794-4

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN CONTACT, SZ 20 AMPLIMITE - Aerospace & Military CONN PIN 26-28AWG CRIMP GOLD 109 Series Pin Contact size 20 28-26AWG 206794-4 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Terminate To WirePinContact Size = 20Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PINCONTACT,SZ20 TE Connectivity AMPLIMITE 109 Series系列 尺寸20触点 公 压接 D-sub 连接器触点, 镀金镀铜 触点, 28 → 26 AWG PIN CONTACT, SZ 20
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Contacts标准包装数量Bulk

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant / ELV compliant认证机构标志No

电气参数

连接器阻抗压接最大额定电流否
连接器类型 - 电压输入Crimp输出高/低电流No

机械参数

直径1.73包装方式Bulk
导线线规28-26端接方式Crimp
触点形式Machined触点尺寸20
触头类型Signal触点形状Machined
端子尺寸20连接器类型Connector D-Subminiature
接触镀层Gold Over Copper插入件材料铜合金
触头材料Copper Alloy包装数量Loose Piece
主要材料Copper Alloy端接排数压接
端接样式Crimp第一触头极性Pin (Male)
连接器颜色是接触件尾部长度20
接触件端接Crimp绝缘直径1.83 [.072] Max.
引脚总长度.325接触件表面处理 - 配合黑色、红色
接触镀层厚度50触点材料 - 配合Gold over Copper
线规或范围 - AWG0.08-0.15² [28-26]线规或范围 - mm²28 → 26 AWG
触点材料 - 镀层GoldoverCopper

产品信息

制造商.041备注Contact is color coded.
类型Signal连接器性别PIN
系列109制造商全称AMP
产品子类型Contact其他规格Wire/Cable
适用产品/相关产品MIL-C-24308,MIL-C-39029

文档与媒体

在线文档
206794-4?RQPN=206794-4
