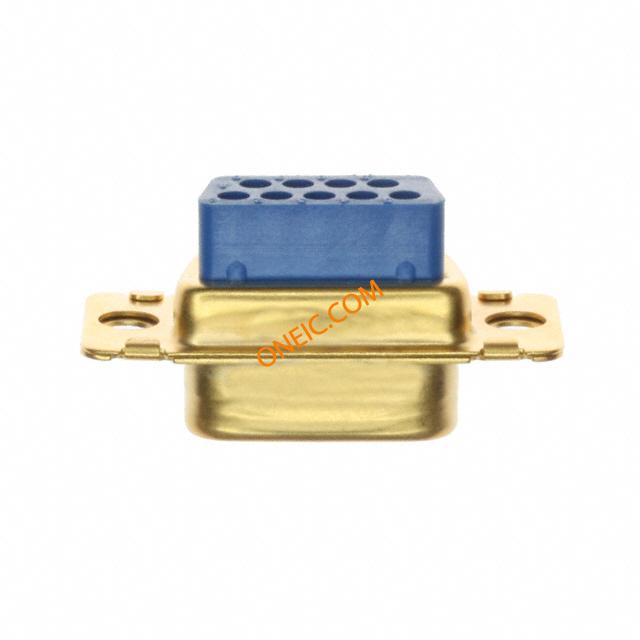

207252-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS 2.7mm Crimp ST D-Sub Standard Connectors PLUG ASSY,SZ 1,AMPLI AMPLIMITE - Aerospace & Military CONN D-SUB PLUG 9POS CRIMP Conn Housing PL 9 POS 2.7mm Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 9Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB SHELL, PLUG, 9POS, BRASS Conn;D-Sub;CablePlug;9Pos;STR;109Series;Crimp;20AWG PLUG ASSY,SZ 1,AMPLIMITE |
| 分类 |
商业参数
| 零件号别名 | 311P409-1P-B-12 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85366910 | 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器阻抗 | No | 连接器类型 - 电压输入 | No |
机械参数
| 颜色 | Blue | 间距 | 2.7 mm |
| 重量 | 0.009 | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 外壳尺寸 | 1 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Crimp Snap-in |
| 非磁性 | Yes | 基体材料 | :Brass |
| 安装类型 | Straight | 外壳镀层 | Gold |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Brass |
| 连接器样式 | Plug | 本体材料 | :Metal |
| 触头材料 | Brass | 主要材料 | D-Subminiature |
| 端接样式 | Crimp | 第一触头极性 | Pin |
| 触点数 | 9 | 介电材料 | Polyester, Glass Filled |
| 位数 | 9 | 外壳尺寸-插件 | :1 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 |
| 外壳材料及表面处理 | Brass, Gold Plated | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 109 |
| 密度 | Standard | 制造商全称 | AMP |
| 产品子类型 | Connector | 其他规格 | Wire/Cable |
| 设备部件号 | 311P409-1P-B-12 | 适用产品/相关产品 | :Size 20 Crimp Snap-in Contacts |
