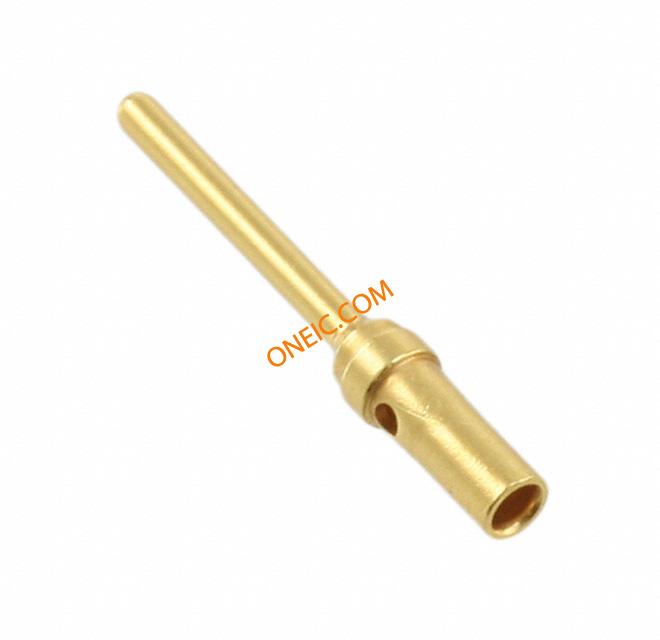

205089-4

点击放大查看

205089-4

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN 24-20 AWG AMPLIMITE - Aerospace & Military CONN PIN 20-24 AWG CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Terminate To WirePinContact Size = 20Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONTACT, CRIMP, PIN, 24-20AWG HD20PINCONTACT,NON-MAG HD 20 PIN CONTACT,NON-MAG
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称2050894零件号别名G-10-P1
产品类别D-Sub Contacts标准包装数量Bulk

合规参数

RoHSRoHS Compliant By Exemption海关税号85366910
抗辐射加固No无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant / ELV compliant认证机构标志Yes

电气参数

输出高/低电流No

机械参数

深度2.16 mm间距Not Required mm
重量0.002镀层Gold
直径0.99 - 1.04材料（通用）Copper Alloy
包装方式Bulk导线线规24-20
端接方式Crimp触点尺寸20
触头类型Signal安装类型Straight
插针或插孔Pin连接器类型Connector D-Subminiature
接触镀层Gold Over Copper安装样式Cable
触头材料Copper Alloy壳体材料Not Required
包装数量Loose Piece主要材料Copper Alloy
端接样式Crimp第一触头极性Pin (Male)
连接器颜色No触点数Not Required
接触件尾部长度20接触件端接Crimp
绝缘直径1.83 [.072] Max.触点材料 - 配合Gold over Copper
线规或范围 - AWG0.20-0.60² [24-20]触点材料 - 镀层GoldoverCopper

产品信息

类型Machined连接器性别PIN
系列109制造商全称AMP
产品子类型Contact端口数1 Port
其他规格Wire/Cable设备部件号G-10-P1
适用产品/相关产品:109 Series Connectors

文档与媒体

PDF 文档
1600703.pdf
在线文档
205089-4?RQPN=205089-4

相关型号

211640-4

211640-4

te connectivity / amp

Conn D-Subminiature PL 25 POS Crimp ST Panel Mount 25Terminal 1Port D-Sub Standard Connectors GMT ASY PLUG 25 POS AMPLIMITE Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG 25POS CRIMP Conn Housing PL 25 POS Crimp ST Cable Mount Conn Housing PL 25 POS Crimp ST Cable Mount Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub GMT ASY,PLUG,25 POS,AMPLIMITE

¥488.4480
详情
212522-1

212522-1

te connectivity / amp

Conn D-Subminiature PL 1Power/21Signal POS Solder ST Cable Mount 22Terminal 1Port D-Sub Mixed Contact Connectors PLUG ASSY,21C1,AMPLI 25 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG 109 MIX 21C1 Conn Housing PL 1Coaxial/21Signal POS Crimp ST Conn Housing PL 1Coaxial/21Signal POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 21C1Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLUG ASSY,21C1,AMPLIMITE

¥72.2160
详情

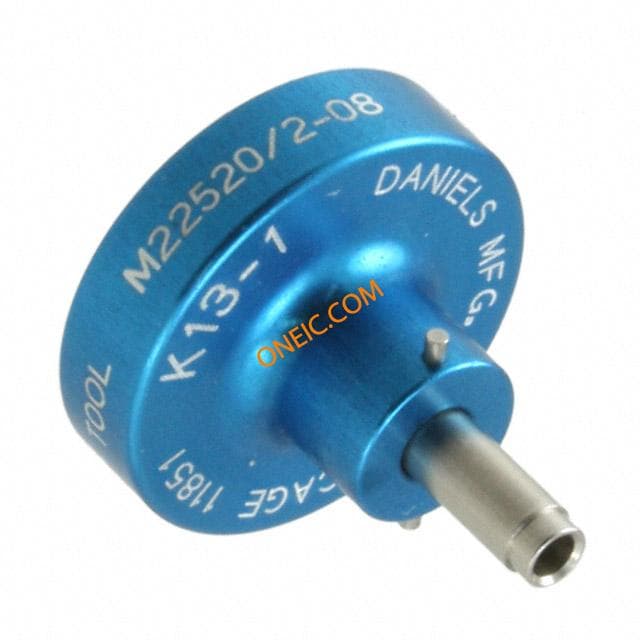

601966-5
