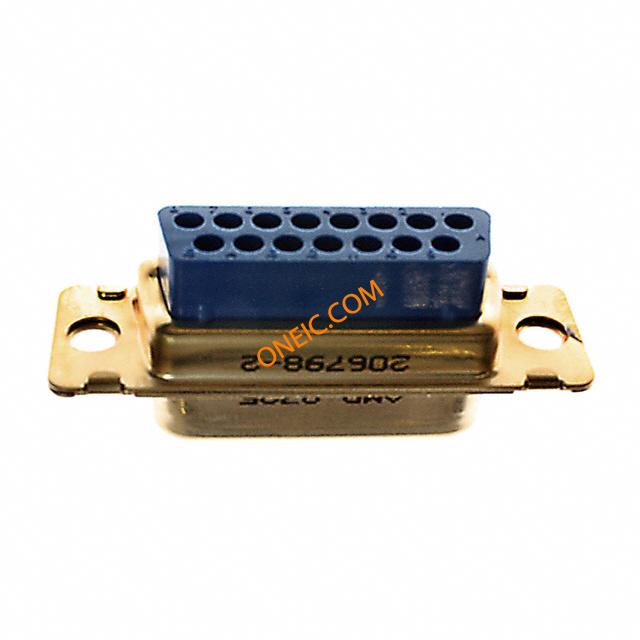

206798-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 15 POS 2.7mm Crimp ST D-Sub Standard Connectors PLG ASSY,15 POS,AMPL AMPLIMITE - Aerospace & Military CONN D-SUB PLUG HSING 15POS STD Conn Housing PL 15 POS 2.7mm Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub Conn;D-Sub;CablePlug;15Pos;STR;109Series;Crimp;20AWG PLG ASSY,15 POS,AMPLIMITE |
| 分类 |
商业参数
| 零件号别名 | 311P409-2P-B-12 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器阻抗 | No | 连接器类型 - 电压输入 | No |
机械参数
| 颜色 | Blue | 深度 | 16.25 mm |
| 间距 | 2.7 mm | 高度 | 12.54 mm |
| 外形尺寸(长x宽) | 2 | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点形式 | Signal | 触点尺寸 | 20 |
| 触头类型 | Crimp Snap-in | 非磁性 | Yes |
| 外壳表面处理 | 金 | 外壳颜色 | Blue |
| 安装类型 | Straight | 外壳镀层 | Gold |
| 端子尺寸 | 20 | 行程角度 | Straight |
| 连接器类型 | Plug for Male Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Brass | 连接器样式 | Plug |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 39.14 mm | 主要材料 | D-Subminiature |
| 连接器 - 电缆 | 否 | 端接样式 | Crimp |
| 第一触头极性 | Pin | 触点数 | 15 |
| 介电材料 | Polyester, Glass Filled | 位数 | 15 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 |
| 外壳材料及表面处理 | Brass, Gold Plated | 触点材料 - 柱 | 铜合金 |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 109 |
| 密度 | Standard | 排列方式 | MS18274-1 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 其他规格 | Wire/Cable | 输出配置 | Free Hanging (In-Line) |
| 设备部件号 | 311P409-2P-B-12 | ||
环境参数
| 工作温度 | -55C to 125C | ||
