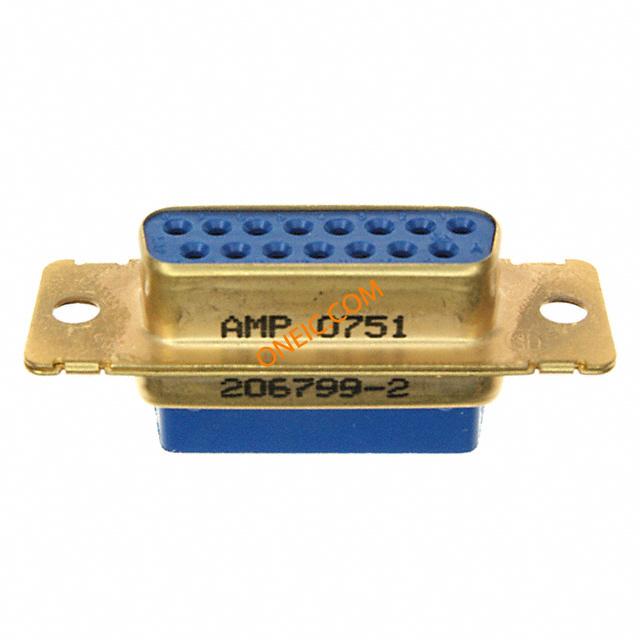

206799-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing F 15 POS Crimp ST Cable Mount D-Sub Standard Connectors RECEPT ASSY,15 POSN, AMPLIMITE - Aerospace & Military CONN D-SUB RCPT HSING 15POS STD Conn Housing F 15 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub HOUSING, D SUB, STANDARD, 15POS, RCPT Conn;D-Sub;CableSocket;15Pos;STR;109Series;Crimp;20AWG RECEPT ASSY,15 POSN,AMPLIMITE |
| 分类 |
商业参数
| 零件号别名 | 311P409-2S-B-12 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器阻抗 | No | 连接器类型 - 电压输入 | No |
机械参数
| 颜色 | Blue | 深度 | 12.54 mm |
| 间距 | 2.7 mm | 高度 | 12.54 mm |
| 重量 | 0 | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Crimp Snap-in |
| 非磁性 | Yes | 外壳颜色 | Blue |
| 安装类型 | Straight | 外壳镀层 | Gold |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Brass | 连接器样式 | Receptacle |
| 本体材料 | :Metal | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 39.14 mm |
| 主要材料 | D-Subminiature | 端接样式 | Crimp |
| 第一触头极性 | Socket | 触点数 | 15 |
| 介电材料 | Polyester | 位数 | 15 |
| 外壳尺寸-插件 | :2 | 衬套/护套类型 | No |
| 安装孔直径 | 3.05 | 外壳材料及表面处理 | Brass, Gold Plated |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | 系列 | 109 |
| 密度 | Standard | 制造商全称 | AMP |
| 产品子类型 | Connector | 其他规格 | Wire/Cable |
| 设备部件号 | 311P409-2S-B-12 | 适用产品/相关产品 | :Size 20 Crimp Snap-in Contacts |
环境参数
| 工作温度 | -55C to 125C | ||
