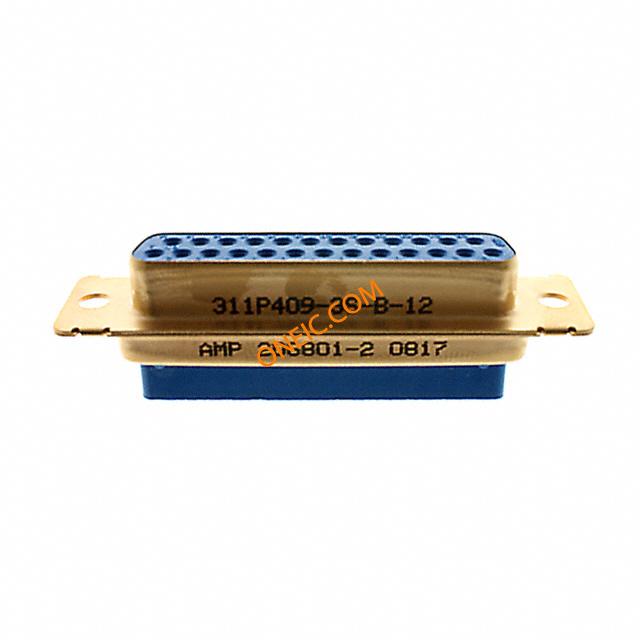

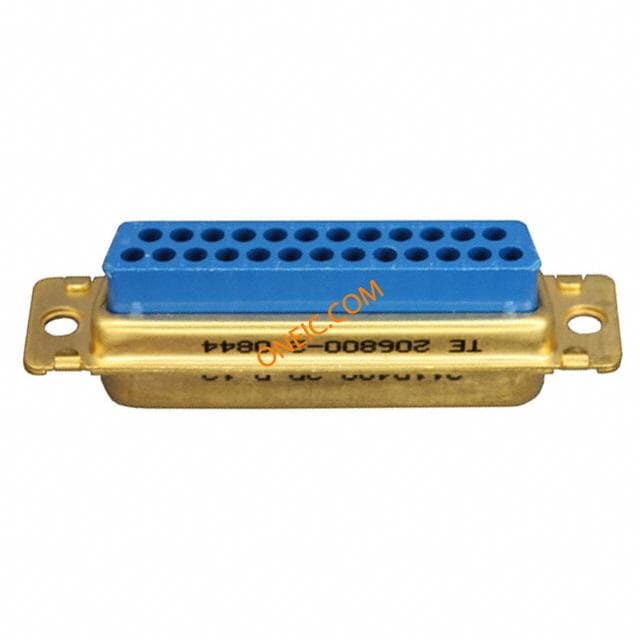

206801-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 25 POS 2.7mm Crimp ST D-Sub Standard Connectors RECEPT ASSY,25 POS,A AMPLIMITE - Aerospace & Military CONN D-SUB RECEPT 25POS CRIMP Conn Housing RCP 25 POS 2.7mm Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 25Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONNECTOR, RECEPTACLE, D-SUB, 25WAY Conn;D-Sub;CableSocket;25Pos;STR;109Series;Crimp;20AWG AMPLIMITE RECEPT ASY,25 POS |
| 分类 |
商业参数
| 零件号别名 | 311P409-3S-B-12 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 认证机构标志 | Yes |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 109 Series | 连接器阻抗 | No |
| 连接器类型 - 电压输入 | No | ||
机械参数
| 颜色 | Blue | 深度 | 16.68 mm |
| 间距 | 2.7 mm | 高度 | 12.54 mm |
| 重量 | 0.02 | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 外壳尺寸 | 3 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Crimp Snap-in |
| 非磁性 | Yes | 外壳颜色 | Blue |
| 安装类型 | Straight | 外壳镀层 | Gold |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Brass | 连接器样式 | Receptacle |
| 本体材料 | :Brass | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 53.03 mm |
| 主要材料 | D-Subminiature | 端接样式 | Crimp |
| 第一触头极性 | Socket | 触点数 | 25 |
| 接触件端接 | :Crimp | 介电材料 | Polyester |
| 位数 | 25 | 衬套/护套类型 | No |
| 安装孔直径 | 3.05 | 外壳镀层厚度 | 50µin (1.27µm) |
| 外壳材料及表面处理 | Brass, Gold Plated | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 109 |
| 密度 | Standard | 制造商全称 | AMP |
| 产品子类型 | Connector | 其他规格 | Wire/Cable |
| 设备部件号 | 311P409-3S-B-12 | ||
环境参数
| 工作温度 | -55C to 125C | ||
