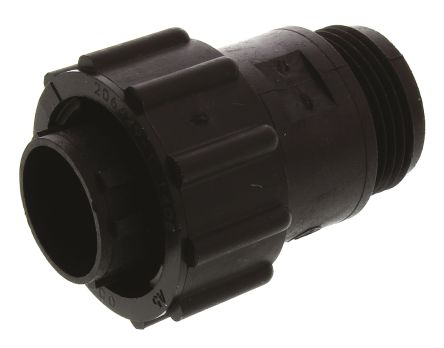

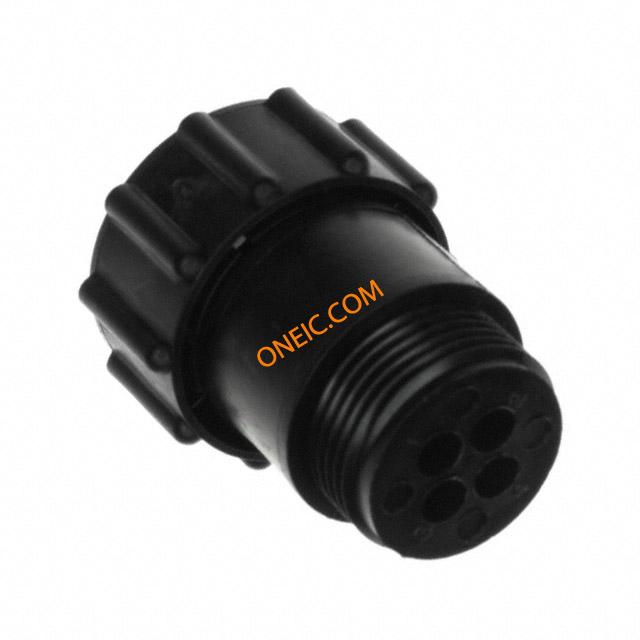

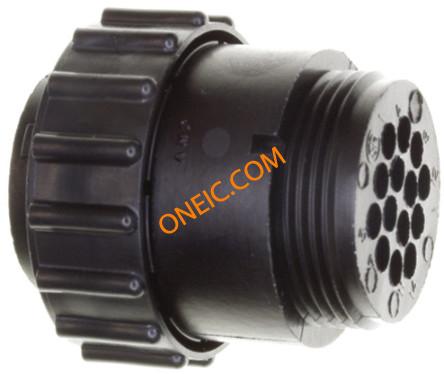

206429-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Sealed CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN PLUG CPC 4POS REV SER 1 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector PLUG 4 POSITION shell size 11 Conn Sealed CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONN, CIRCULAR, PLUG, 4 WAY, 11-4 ConnectorHousing;CPCPlugAssy;4Pos.;Sz.11;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:4 Plug CPC1 Poles=4, accepts male contacts / Free hanging/cable mount, 206429-1, TE Connectivity TE Connectivity 4路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 11-4 |
| 分类 |
商业参数
| 交货时间 | 37 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 4 | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.002 | 直径 | 24.77 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 11 | 方向 | A |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触点形式 | 4Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | size 11 | 连接器样式 | Plug |
| 插入角度 | :11-4 | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Glass Reinforced Thermoplastic | 壳体材料 | Thermoplastic |
| 总长度 | 34.67 mm | 包装数量 | 1 |
| 主要材料 | CircularPlasticConnector | 连接器 - 电缆 | plug |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Reverse | 外壳尺寸-插入件（转换至） | 11-4 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Sealed CPC | 连接器性别 | PL |
| 系列 | Series 1 | 产品特性 | ReverseGender |
| 钥匙类型 | A | 极性 | A |
| 预加载 | No | 排列方式 | 11-4 |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 20 |
| 射频系列/标准 | 206429 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 防护等级 | IP65 | ||
文档与媒体
相关型号
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
182921-1
te connectivity / amp
Conn CPC SKT 4 POS ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RCPT CPC 4POS PANEL MT REV 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector 11-4 RCPT REV SEX Conn CPC SKT 4 POS ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, CPC, SIZE 11, 4WAY, SKT Housing,rcpt,series1,shellsize11,4W Connector: circular; Series: CPC Series 1; socket; female; PIN:4 Female receptacle series CPC 4-pin CPC 1 4P Female 11, 182921-1, TE Connectivity TE Connectivity 4路 面板安装 直向 连接器 插座 , 母触点 CPC SQ FL. RCPT REV SEX
788130-1
te connectivity / amp
Conn CPC SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Standard Circular Connector CPC RCPT POSTED SZ 11-4 CPC Connectors CPC RCPT,POSTED,SZ 11 4POS CPC RCPT,POSTED,SZ 11-4

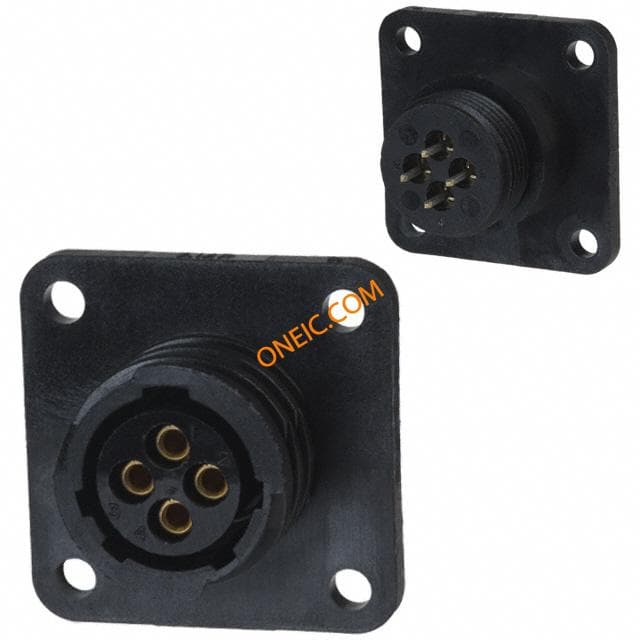

208283-4
te connectivity / amp
Conn CPC SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port CPC Connectors CONN RCPT CPC 4POS SZ11 REV 4 Pole Female Straight Through Hole Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector REC SKT 11-4 PCB Conn CPC SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 44 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 11, 4POS, PANEL Connector;CPC;Recept.Assy,Posted;4Pos;Sz11;Series1;PanelMnt;RevSex TE Connectivity 4路 通孔 直向 连接器 插座 , 母触点 CPC RECPT ASSEMBLY SIZE 11-4
211908-1
te connectivity / amp
Conn CPC SKT 4 POS ST Panel Mount 4 Terminal 1 Port Standard Circular Connector RCPT 11-4 REV SEX CPC Connectors CONN RECEPT 4POS REVERSE CPC Conn CPC SKT 4 POS ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECPT, 11-4, REVERSE SEX CPC
66361-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 14-18AWG 30GOLD CRIMP Series 1 gold plated pin contact Standard Circular Contacts TYPE III+ PIN 18-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, TYPE3, SIZE16, PK10 III+PIN,18-14,30AU>10,LP TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ PIN,18-14,30AU>10,LP
206430-3
te connectivity / amp
Conn Sealed CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RECEPT CPC 4POS REV SER 1 Connector; CPC; 4; Receptacle; Wire; 11; All Plastic; 5/8 in. - 24 UNEF-2A Standard Circular Connector RECEPTACLE 4 PIN shell size 11 Conn Sealed CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 11, 4POS, PANEL ConnectorHousing;CPCRecept.Assy;4Pos.;Sz11;Series1;PanelMnt;RevSex Receptacle CPC Special Series 1 Poles=4, accepts female contacts / with flange / sealed, 206430-3, TE Connectivity CPC RECPT ASSEMBLY SIZE 11-4
66106-8
te connectivity / amp
III+ PIN,26-24,30AU/FL,STRIP Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors III+ PIN26-2430 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,26-24,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接触点, 压接, 镀金触点
206430-4
te connectivity / amp
Conn Sealed CPC SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN RECEPT CPC 4POS REV SER 1 Standard Circular Connector CPC RCPT ASSY SIZE 11-4 Conn Sealed CPC SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR RCPT SIZE 11, 4POS FREE HANGING CPC RECPT ASSEMBLY SIZE 11-4

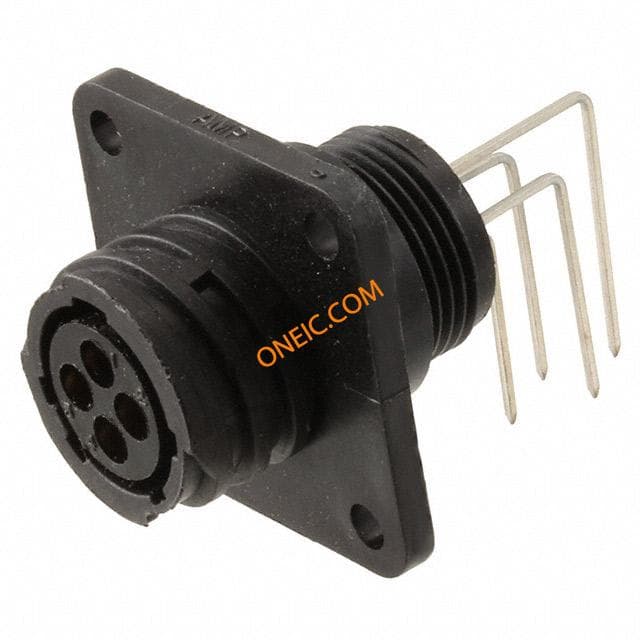

796407-1
