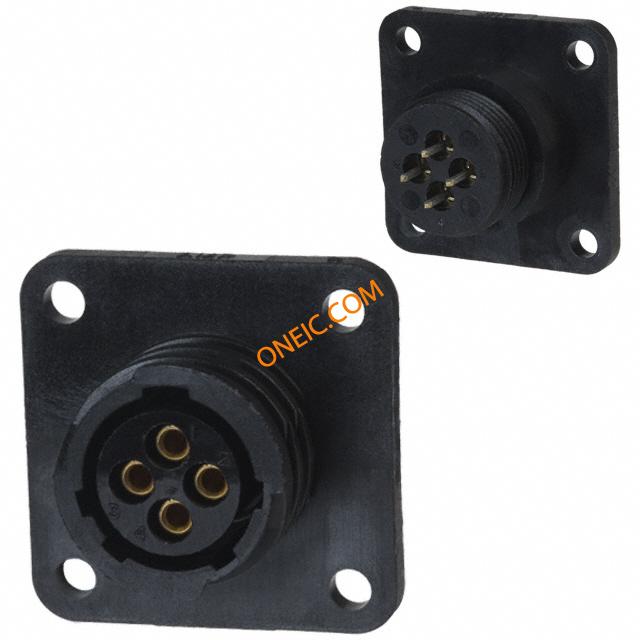

208283-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port CPC Connectors CONN RCPT CPC 4POS SZ11 REV 4 Pole Female Straight Through Hole Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector REC SKT 11-4 PCB Conn CPC SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 44 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 11, 4POS, PANEL Connector;CPC;Recept.Assy,Posted;4Pos;Sz11;Series1;PanelMnt;RevSex TE Connectivity 4路 通孔 直向 连接器 插座 , 母触点 CPC RECPT ASSEMBLY SIZE 11-4 |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Trays | 工厂包装数量 | 27 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600VAC/DC | 通道数量 | 4 |
| 最大额定电流 | 13A | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.005 | 包装方式 | Tray |
| 外壳尺寸 | 11 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触头类型 | Socket |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 插针或插孔 | Socket | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin over Nickel |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 连接器样式 | Receptacle | 本体材料 | :Thermoplastic |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Printed Circuit Board | 第一触头极性 | Female |
| 配接方向 | Keyed | 触点数 | 4 |
| 端接表面处理 | Tin | 位数 | 4 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.125" |
| 外壳材料及表面处理 | Thermoplastic | 端子柱长度 | 4.04 [0.159] |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | Posts are 0.43 [.017] offset from centerline of contacts. All posts must be ori | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 产品特性 | ReverseGender | 钥匙类型 | A |
| 预加载 | Yes | 排列方式 | 11-4 |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 其他规格 | Without | 应用细节 | Commercial |
