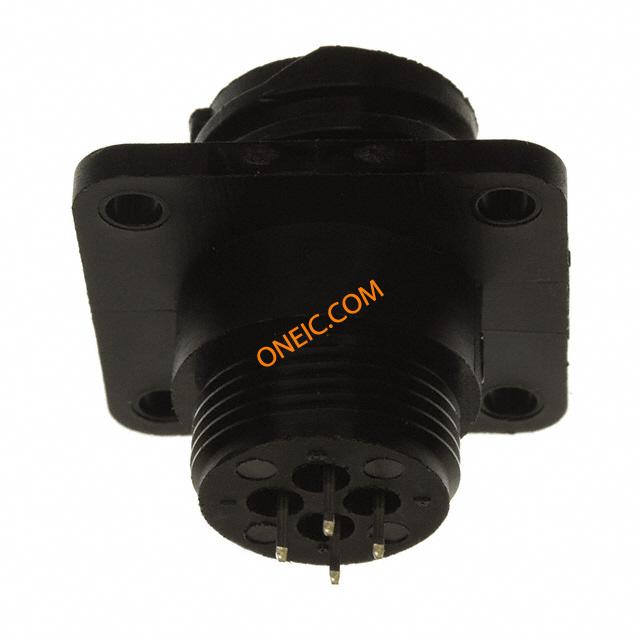

208283-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Standard Circular Connector SQ FLANGE RECP 4P 324 CPC Connectors CONN RCPT CPC 4POS SZ11 REV Conn CPC SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleSocketPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 11-4 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Trays | 工厂包装数量 | 27 |
合规参数
| RoHS | No | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 输入端 | 1.209 | 额定电压 | 600VAC/DC |
| 防溅等级 | 无 | 通道数量 | 4 |
| 最大额定电流 | 13A | 连接器类型 - 电压输入 | 反向 |
机械参数
| 密封型 | No | 外形尺寸(长x宽) | 11 |
| 包装方式 | Tray | 外壳尺寸 | 11 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Solder | 螺纹尺寸 | 5/8 - 24 UNEF-2A |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 插针或插孔 | Socket | 外壳镀层 | Gold over Nickel |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin-Lead over Nickel |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 包装数量 | 27 |
| 面板安装类型 | Square Flange | 端接样式 | Solder Tail |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 4 | 端接表面处理 | Tin-Lead |
| 位数 | 4 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Thermoplastic |
| 端子柱长度 | 4.04 [0.159] | 接触镀层厚度 | 30 uin |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Reverse |
产品信息
| 备注 | Posts are 0.43 [.017] offset from centerline of contacts. All posts must be ori | 类型 | CPC |
| 连接器性别 | RCP | 系列 | CPC |
| 钥匙类型 | A | 预加载 | Yes |
| 产品子类型 | Connectors | 其他规格 | Without |
| 适用产品/相关产品 | 208283-4 | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -40°C ~ 105°C |
