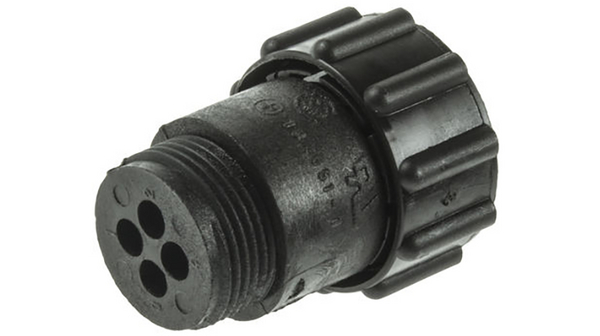

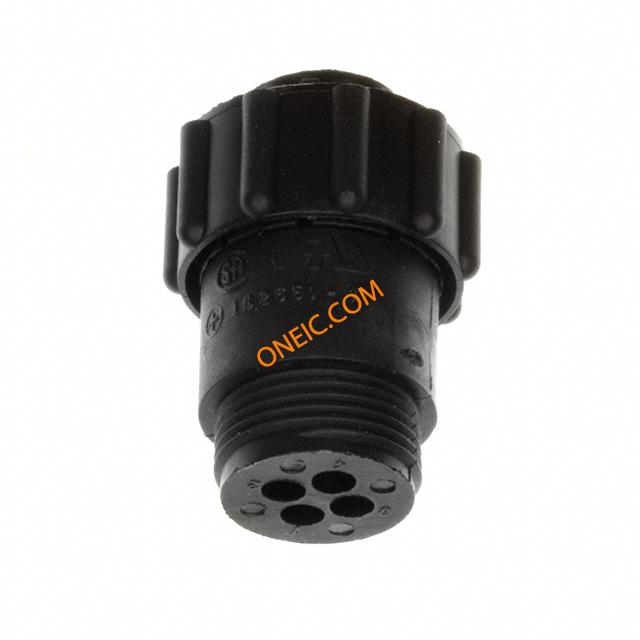

182651-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Standard Circular Connector 11-4 PLUG Circular Plastic Connectors CONN PLUG 4POS REV FREE HANGING 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, PIN CONTACT, 4WAY 4wpincontactcablemntplug,13A,ser1 Connector: circular; Series: CPC Series 1; plug; male; PIN:4 Cable plug, series CPC 4-pin CPC 1 4P Male 11, 182651-1, TE Connectivity TE Connectivity 4路 自由悬挂 直向 连接器 插头 RECEPTACLE CASE |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | UL列名 | Recognized |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 认证机构标志 | Yes |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电阻 | None | 额定电压 | :250V |
| 工作电压 | :250V | 通道数量 | 4.0 |
| 最大额定电流 | :13A | 绝缘电阻 | :5000Mohm |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 密封型 | No | 重量 | 0.008 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 11 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触点形式 | 4Signal |
| 触点尺寸 | 16 | 触头类型 | Pin |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Housing | 紧固类型 | Threaded Coupling |
| 安装样式 | Free Hanging | 封装形式 | size 11 |
| 连接器样式 | Plug | 插入角度 | :11-4 |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 壳体材料 | Thermoplastic - GF | 包装数量 | 100 |
| 连接器 - 电缆 | plug | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Black | 配接方向 | Threaded |
| 触点数 | 4 | 位数 | 0.0 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Thermoplastic |
| 外壳与棱镜材料 | thermoplastic | 第一连接器安装类型 | :Free |
| 第二连接器安装特性 | Reverse | ||
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | PL |
| 系列 | CPC | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Connectors |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 射频系列/标准 | 182651 | 其他规格 | Without |
| 适用产品/相关产品 | :CPC Series Pin Contacts | ||
环境参数
| 防护等级 | Without | 工作温度 | :105°C |
