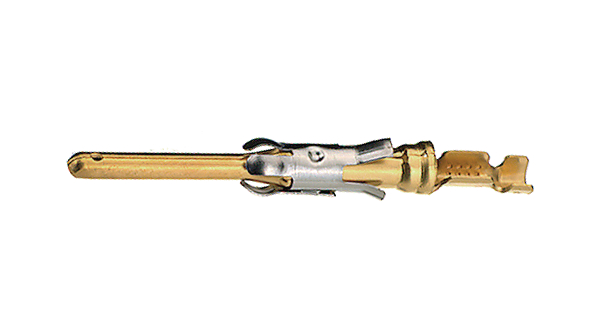

163082-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 062 PIN ASS. TYP3+ Multimate CONN PIN 18-16AWG .062 TIN Type III+ Series Size 16 Male Circular Connector Contact, Crimp,Wire size 18 to 15AWG Standard Circular Contacts 062 PIN ASS. TYP3+ 163082-1 Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area PlatingWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, III+, 18-16AWG MALECRIMPCONTACTIII+ Contact; male; 0.75÷1.5mm2; 16÷18AWG; Type III+; tinned; crimped Crimp contact male, 163082-1, TE Connectivity TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于III+ 型系列连接器, 18 → 15 AWG 线规格 PIN, MALE |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | 6,400 | 工厂包装数量 | 200 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 13 A | 连接器类型 - 电压输入 | CPC Series 1, CPC Series 4 |
机械参数
| 长度 | 27.5mm | 重量 | 0.042 |
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Bulk | 导线线规 | 16-18 AWG |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 电缆直径 | 2...2.5mm | 连接器类型 | male |
| 接触镀层 | Tin | 封装形式 | in bulk |
| 触头材料 | Brass | 包装数量 | 3200 |
| 连接器 - 电缆 | contact | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 镀层厚度（通用） | 78.7µin (2.00µm) |
| 线规或范围 - AWG | :18AWG | 线规或范围 - mm² | 0.75...1.5mm2 |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 3200 | 类型 | Stamped |
| 连接器性别 | Male | 系列 | Type III+ |
| 适配器系列 | Type III+ | 单元数量 | 1 |
| 适用产品/相关产品 | :Type III+ Series Connectors | ||
文档与媒体
相关型号
207305-1
te connectivity / amp
Conn Housing RCP 24 POS 5mm Crimp ST Metrimate Connectors CONN RECEPT 24 POS METRIMATE 24 way female connector,5mm pitch Pin & Socket Connectors 24P SQ GRID RCPT Conn Housing RCP 24 POS 5mm Crimp ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 24ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 24WAY, 5 Connector,SoftShell;Receptacle;24;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 24 Contact DesignMale Metrimate, 207305-1, TE Connectivity TE Connectivity Metrimate 系列 4 行 5mm 节距 24 路 直 母 压接连接器外壳 24 POS SQ GRID METRIMATE-RCPT
91523-1
te connectivity / amp
Straight Action Hand Tool Crimpers CERTICRIMP 2 SAHT TYPE III+ TOOL CRIMPER CPC CERTI 16-24 AWG Crimper,SAHTRatchet,24-16AWG,Circular Connector Accessories CPC Connector Hand Tool Crimper;SAHTRatchet;24-16AWG;Circular;TypeIII,TypeVIContacts;CERTI-CRIMPII CERTICRIMP 2,SAHT III+
207020-1
te connectivity / amp
Conn Housing RCP 36 POS 5mm ST Metrimate Connectors CONN RECEPT 36 POS METRIMATE 36 way female connector,5mm pitch Pin & Socket Connectors SQ GRID 36 PIN CONN Conn Housing RCP 36 POS 5mm ST Product Highlights:HousingRectangular Connector ConfigurationNumber of Positions = 36ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 36WAY, 5 Connector,SoftShell;Receptacle;36;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 36 Contact DesignMale Metrimate, 207020-1, TE Connectivity TE Connectivity Metrimate 系列 9 行 5mm 节距 36 路 直 母 压接连接器外壳 METRIMATE RCPT 36 POS
58495-2
te connectivity / amp
Connector Accessories Die Set Punches & Dies PROCRIMPER DIE ASSY MULTIMATE TOOL DIE SET CPC CONN TYPE III Die set for procrimper tool DIE, CPC SERIES 1 ProcrimperDieAssymblyMultimate;Diefor527-0108Handtool Crimp insert for type III+, 58495-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 28 → 16 AWG 线规格 PROCRIMPER DIE ASSY MULTIMATE
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16
539635-1
te connectivity / amp
Assembly Tools, AMP MCP Interconnection System Crimpers ERGO CRIMP HD TOOL TOOL HAND ERGOCRIMP CPC series 1 ergo crimp tool frame Crimp Tool CRIMP TOOL, 0.5-2.1MM FRAME W/OUT DIE Crimper;Ratchet;22-10AWG;SOLISTRANDSplices/Terminals;539662-2Die Crimp tool without insert, 539635-1, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具框架 ERGOCRIMP HAND TOOL
58495-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PCRIMP HN 28-16 AWG TOOL CRIMP CPC PROCRIMPER III Type III + contacts crimp tool CRIMP TOOL, TYCO AMP TYPE I Crimper;Ratchet;28-16AWG;CPC,MultimateContacts;58495-2Die;PRO-CRIMPERIII Tool: for crimping; terminals; 16÷18AWG,24÷20AWG,28÷24AWG Hand plier "Pro Crimper II", 58495-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Multimate Type III+, Multimate Type VI Contacts 压接工具 PRO CRIMPER ASSY MULTIMATE
163081-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors .062 DIA PIN ASSY 3+ CONN PIN 16-18AWG TIN CRIMP 1.57mm pin contact 18.5-15.5AWG typ 3 Sn 163081-8 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin Contact Mating Area PlatingWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, AWG18.5-15.5 CONTACT, CRIMP, PIN, 18-15AWG, REEL 1.57mmpincontact18.5-15.5AWGtyp3Sn Contact; male; 0.75÷1.5mm2; 16÷18AWG; Type III+; tinned; crimped TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀锡触点 .062 DIA PIN ASSY 3+
207443-1
te connectivity / amp

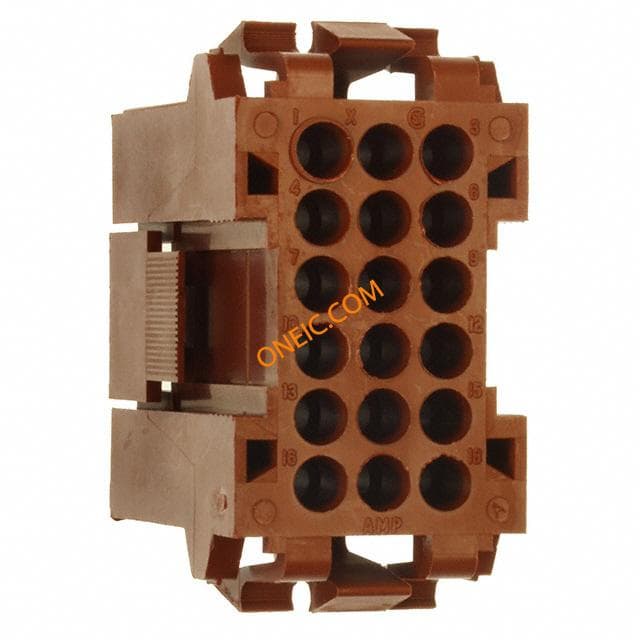

Conn Housing RCP 18 POS 5mm ST Metrimate Connectors CONN RECEPT 18 POS METRIMATE 18 way female connector,5mm pitch Pin & Socket Connectors 18P SQ GRID SKT Conn Housing RCP 18 POS 5mm ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 18ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 18WAY, 5 Connector,SoftShell;Receptacle;18;14A(Max.);600;Thermoplastic;Red TE Connectivity Metrimate 系列 6 行 5mm 节距 18 路 直 母 压接连接器外壳 HSG RECEPT,18 POSN,SM METRIC
91505-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT TYPE III+ TOOL CRIMPER RATCHETING 16-24AWG Crimper,SAHTRatchet,24-16AWG,CPCCon CRIMP TOOL, SAHT TYPE III Crimper;SAHTRatchet;24-16AWG;CPCConnectors,TypeIII,TypeVI,TypeXContacts Crimping tool, 91505-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Multimate Type III+ Contacts 压接工具 , 适用于24 → 16 AWG 线规格 CERTICRIMP 2,SAHT TYPE III+
163086-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN .062 24-20AWG TIN Yellow male crimp contact III+ Pin & Socket Connectors 062 PIN ASS. TYP3+ Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, III+, TIN MALECRIMPCONTACTIII+ Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; tinned; crimped Crimp contact male, 163086-1, TE Connectivity TE Connectivity Type III 系列 13A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 062 PIN ASS. TYP3+
539668-2
te connectivity / amp
Connector Accessories Screw Machined Contacts Tool Die Set Punches & Dies MATRIZE TYPE 3+ TOOL DIE SET FOR XII & III+ CPC series1 ergo crimp die set,1.5/2.5mm Die-Set For Type XII Contacts Crimping dies, 539668-2, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具模具 , 24 → 12 AWG 线规格, Multimate Type XII Contacts MATRIZE TYPE 3+
207018-1
te connectivity / amp

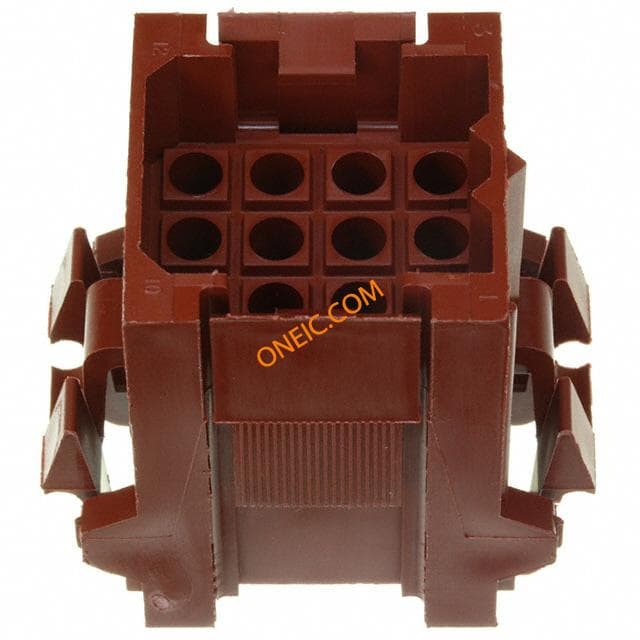

Conn Housing RCP 12 POS 5mm ST Metrimate Connectors CONN RECEPT 12 POS METRIMATE 12 way female connector,5mm pitch Pin & Socket Connectors 12 POS RECEPTACLE Conn Housing RCP 12 POS 5mm ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 12ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 12WAY, 5 Connector,SoftShell;Receptacle;12;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 12 Contact DesignMale Metrimate, 207018-1, TE Connectivity TE Connectivity Metrimate 系列 4 行 5mm 节距 12 路 直 母 压接连接器外壳 METRIC RCPT 12 POS
