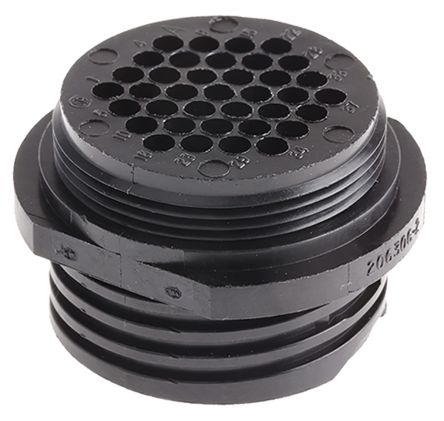

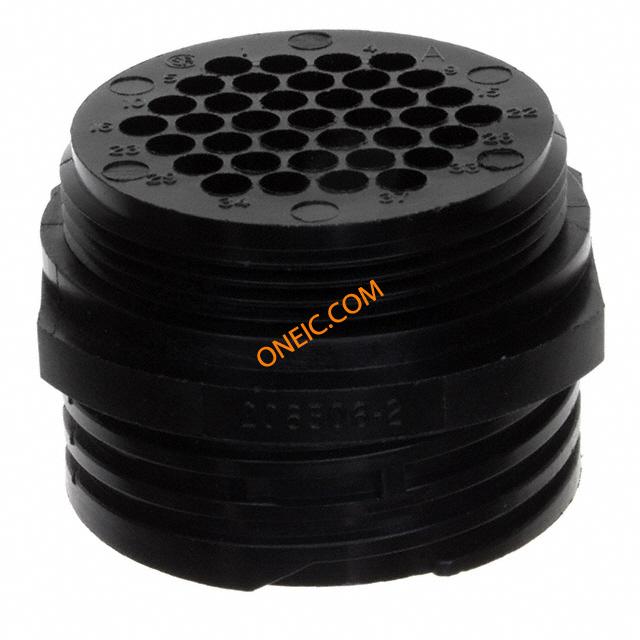

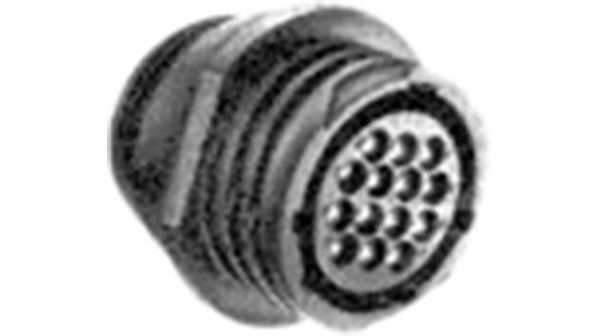

206306-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS REV SER 1 37 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector RECEPTACLE 37 PIN free hanging s.s. 23 Conn CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 37WAY ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; female; PIN:37 Receptacle CPC1 Poles=37, accepts female contacts / Free hanging/cable mount, 206306-2, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插座 , 母触点 23-37 F H RECEPT REV SEX |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 工作电压 | :250V |
| 通道数量 | 37 | 最大额定电流 | :13A |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.022 | 包装方式 | Bulk |
| 外壳尺寸 | 23 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | :Glass filled nylon 6.6 |
| 连接器样式 | Receptacle | 插入角度 | :23-37 |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Nylon | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 37 |
| 位数 | 37 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Free |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | 5 Locating Key Arrangement. | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 产品特性 | ReverseGender | 钥匙类型 | A |
| 预加载 | No | 排列方式 | 23-37 |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 250 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
