点击放大查看

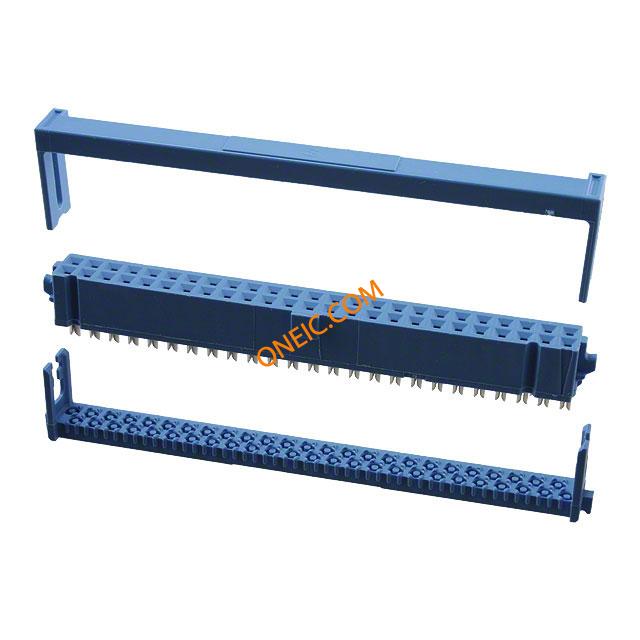

2-1658526-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 50POS VERT .100 GOLD Headers & Wire Housings 50 POS RECPT 30AU Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 50ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 50WAY 609-5041LF FEM SOCKT,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 其他名称 | 216585264 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - 609 Series | 击穿电压 | :500V |
| 绝缘电阻 | :1Gohm | 触点额定电流 | :1A |
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 重量 | 0.01 | 材料（通用） | :Glass Feinforced Thermoplastic |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | With | 导线线规 | 28-30 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 柱间距 | :2.54mm |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | AMP-LATCH |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Thermoplastic Glass Reinforced |
| 安装特性 | Without | 电缆端接方式 | IDC |
| 配接方向 | With | 触点数 | 50 |
| 接触件端接 | :IDC / IDT | 位数 | 50 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | AMP-LATCH | 产品特性 | Polarizing Key, Strain Relief |
| 极性 | :Bump/Clip | 产品子类型 | Receptacles / Sockets - PCB |
| 连接类型 | Ribbon Cable | 带调制解调器控制 | Yes |
环境参数
| 插拔次数 | :200 | 工作温度 | :125°C |
相关型号
1-5102160-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 50POS .100 GOLD Headers & Wire Housings 50 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:With ContactsHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM Connector;UniversalEjectionPinHeader;50;0.100in.x0.100in.;4-Sided Pin header DIN 41651 50P, 1-5102160-0, TE Connectivity A/L UNIV HDR 50P RA
1-5102154-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 50POS .100 GOLD AMP-LATCHUniversalEjectionPinHeader AMP-LATCH Universal Ejection Pin Header; 50 Pos.; .100 CL; Vertical Mount Headers & Wire Housings 50 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile50 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM AMP-LATCHUniversalEjectionPinHeader,50Pos.,.100CL,VerticalMount Pin header DIN 41651 50P, 1-5102154-0, TE Connectivity A/L UNIV HDR 50P VERT

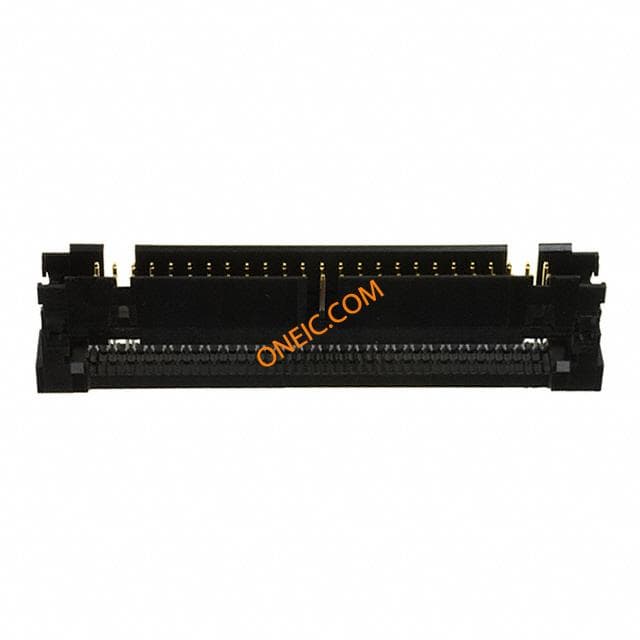

1-111446-7
