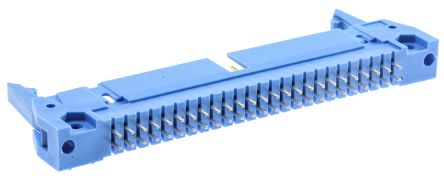

3-5499206-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings UNIV HDR 50P VT BLU LARGE LATCH Pin and Pinless Headers (AMP-LATCH) CONN HEADER 50POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 1A Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 50WAY 50waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 50路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 50P VERT LG LAT B |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 18 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 介电强度 | :1000V/m |
| 最大额定电流 | 1A | 绝缘电阻 | :10Gohm |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Blue | 深度 | 8.53 mm |
| 间距 | 2.54 mm | 高度 | 27.3 mm |
| 重量 | 0.012 | 包装方式 | Tray |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center | 第二连接器 | With |
| 外壳颜色 | Blue | 安装类型 | Vertical |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch Lock/Eject Hooks | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 锁定特性 | Latch | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 82.8 mm | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Blue |
| 配接方向 | With | 触点数 | 50 |
| 接触件端接 | :Solder | 位数 | 50 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 [0.110] |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :PC Board |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers - Universal Ejection Pin | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 温度额定值 | Standard | 工作温度 | - 55 C to + 125 C |
文档与媒体
