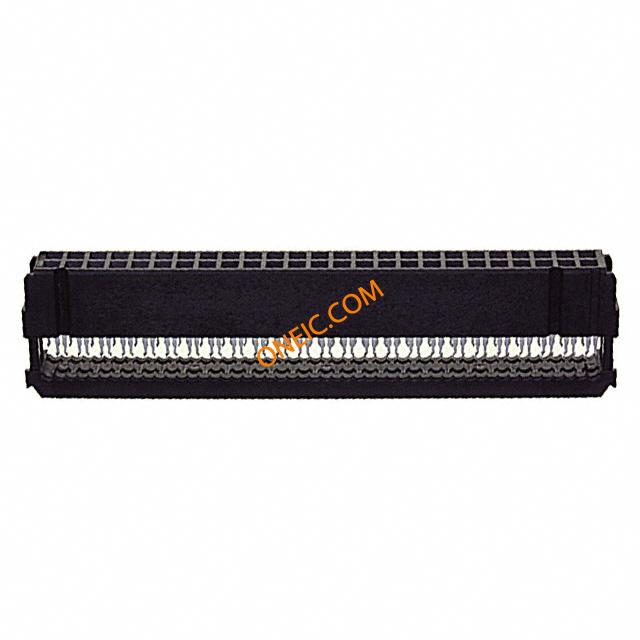

1-1658623-0

点击放大查看

1-1658623-0

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 50POS GOLD AMP-LATCHNOVOConnector,Receptacle,50Pos. AMP-LATCH NOVO Connector; Receptacle; 50 Pos.; Military Polarization; Black Headers & Wire Housings .1CL IDC REC 2X25P 30AU Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle50 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board AMP-LATCHNOVOConnector,Receptacle,50Pos.,MilitaryPolarization,Black 50 NOVO MIL 30DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250供电电压250
输入电阻5000连接器阻抗刺破式压接 (IDC)
最大额定电流1A连接器类型 - 电压输入音叉

机械参数

颜色Black间距2.54 mm
宽度6.1 mm [ .2402 in ]高度15.16 mm [ .5968 in ]
长度2.68in底座类型不带
包装方式Bulk导线类型Ribbon Cable
壳体颜色黑色出线方向Without
电缆类型带状电缆导线线规26-28 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket极化Military
第二连接器Without外壳颜色Black
安装类型No电缆端类型Without
连接器类型NOVO接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
法兰特征否安装样式Cable
排数2驱动力不带
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic安装特性Without
包装数量60面板安装类型通孔 - 焊接
尺寸/外形.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规电缆端接方式IDC
端接样式IDC第一连接器类型插针接头
第一触头极性Socket (Female)配接方向With
触点数50绝缘材料 - 类型.787 – .94 mm [ .031 – .037 in ]
位数50触头长度-柱信号（数据）
安装孔直径带有中心触点材料2.54 x 2.54 [.100 x .100]
接触件表面处理 - 配合锡接触镀层厚度30µin (0.76µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别RCP系列AMP-LATCH, NOVO
产品特性Feed Through极性带有
产品子类型Receptacles / Sockets - Housings连接类型Ribbon Cable
带调制解调器控制YesDigiKey可编程不带

环境参数

工作温度+105°C

文档与媒体

PDF 文档
1599153.pdf
在线文档
1-1658623-0?RQPN=1-1658623-0
