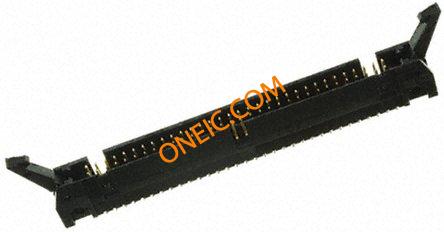

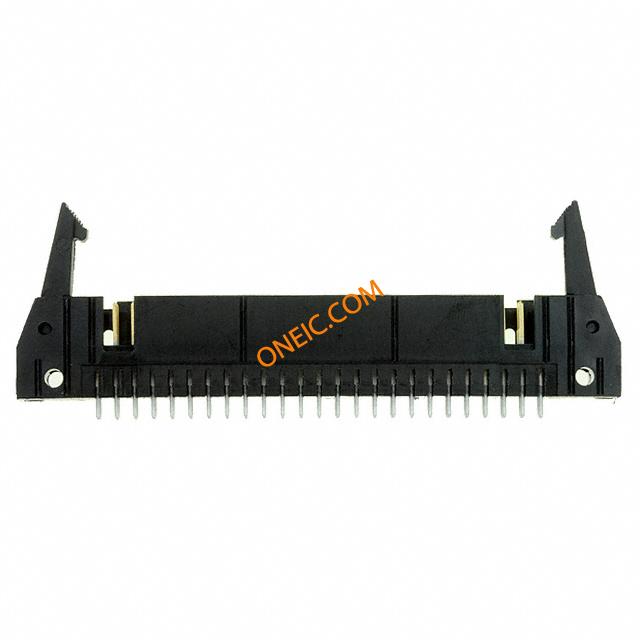

1-5499206-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 50POS .100 GOLD TE Connectivity 1-5499206 Series 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 50 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 50WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,50POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 50路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 50P VERT LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 18 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 击穿电压 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | :1Gohm |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.01227 | 材料（通用） | :Glass Reinforced Thermoplastic |
| 包装方式 | Tray | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 外壳镀层 | :Tin | 连接器类型 | Universal Ejection Pin Headers |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 紧固类型 | Latch Lock/Eject Hooks |
| 排数 | 2 | 封装形式 | 4-Sided |
| 电路板厚度 | 1.57 [0.062] | 锁定特性 | Latch |
| 外形（宽 x 高） | Standard | 触头材料 | Brass, Phosphor Bronze |
| 壳体材料 | Thermoplastic | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 配接方向 | With | 触点数 | 50 |
| 接触件端接 | :Through Hole Vertical | 位数 | 50 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 [0.110] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 1-5499206 | 极性 | :Bump/Clip |
| 制造商全称 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | With | 加载位置数 | All |
环境参数
| 插拔次数 | :200 | 温度额定值 | Standard |
| 工作温度 | :125°C | ||
