1-5499922-0

点击放大查看

1-5499922-0

制造商
TE Connectivity Ltd.
描述Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 50POS .100 15AU TE Connectivity 1-5499922 Series 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 50 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 50WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,50POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 50路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 50P VERT LG LAT
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量18

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Series额定电压250 V ac
开关功能Ejection最大额定电流1A
绝缘电阻:1Gohm最小供电电压250VAC

机械参数

颜色Black深度8.53 mm
间距2.54 mm高度27.31 mm
长度:82.9mm重量0.01198
包装方式Bulk遮蔽类型Yes
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin引脚间距:1.27mm
柱间距2.54 x 2.54 [.100 x .100]极化Center, Dual Polarizing Bar, Military
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
连接器类型Universal Ejection Pin Headers接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
紧固类型Latch, Long/Eject Hooks安装样式Through Hole
排数2封装形式4-Sided
电路板厚度1.57 [0.062]锁定特性Latch
外形（宽 x 高）Standard触头材料:Copper
壳体材料Thermoplastic总长度82.8 mm
主要材料InterconnectSystem尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
连接器颜色:Black配接方向With
触点数50接触件端接:Through Hole Vertical
位数50接触长度 - 配合0.240" (6.10mm)
端子柱长度2.79 [0.110]接触镀层厚度15µin (0.38µm)
安装面板厚度:78.74mm第一连接器安装类型:Straight

产品信息

类型Ejector Header连接器性别HDR
系列1-5499922极性:Bump/Clip
制造商全称AMP-LATCH产品子类型Headers
其他规格With加载位置数All

环境参数

插拔次数:50温度额定值Standard
工作温度-65C to 105C

相关型号

1-1658622-0

1-1658622-0

te connectivity / amp

Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 50POS W/POL GOLD AMP-Latch receptacle,0.08-0.15mm²,50way Headers & Wire Housings 50PIN RIB CBL RCPT Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Connector,Receptacle;Novo;50position,Gold(30);LeadFree TE Connectivity AMP-LATCH Novo 系列 2行 50路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 50 NOVO MIL/CTR 30DP,LEAD FREE

¥9.0600
详情
1-1658623-0

1-1658623-0

te connectivity / amp

Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 50POS GOLD AMP-LATCHNOVOConnector,Receptacle,50Pos. AMP-LATCH NOVO Connector; Receptacle; 50 Pos.; Military Polarization; Black Headers & Wire Housings .1CL IDC REC 2X25P 30AU Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle50 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board AMP-LATCHNOVOConnector,Receptacle,50Pos.,MilitaryPolarization,Black 50 NOVO MIL 30DP, LEAD FREE

¥11.0840
详情

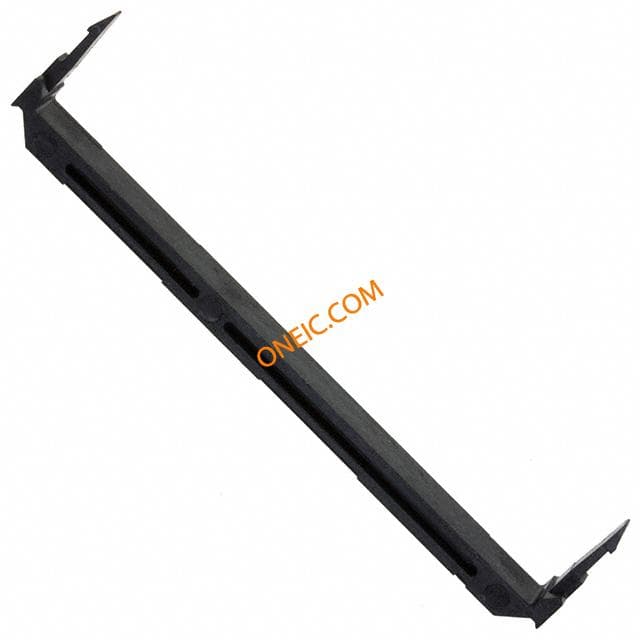

499252-4
