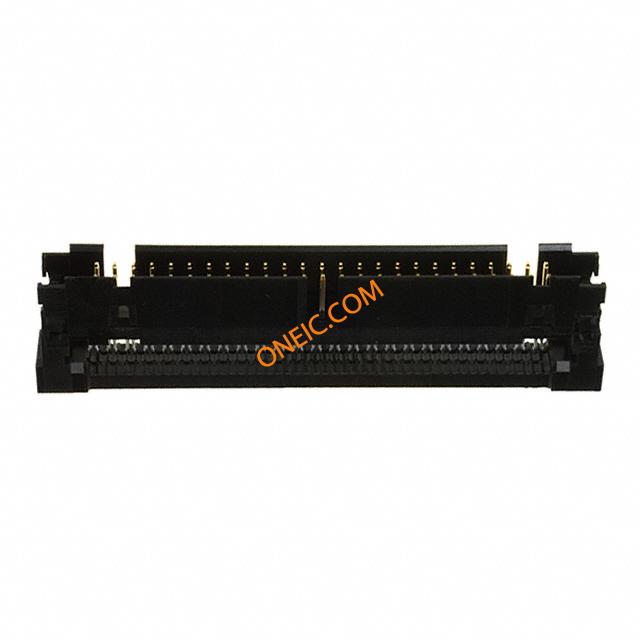

点击放大查看
1-111446-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PL 50 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 50POS 30AU NO LATCH Headers & Wire Housings 100X100 PLG 2X25P WIRE-BOARD CONNECTOR PLUG, 50POS, 2.54MM TE Connectivity AMP-LATCH 系列 2行 50路 2.54mm节距 公 IDC 连接器 , 电缆安装 50 UNIV I/O, NO EARS,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Universal I/O Series | 接触电阻 | 15 mohm |
| 最大额定电流 | 1/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 8.38 mm |
| 间距 | 2.54 mm | 高度 | 19.15 mm |
| 重量 | 0.000001 | 包装方式 | Tray |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | Universal I/O | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 78.03 mm | 安装特性 | Without |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Pin (Male) | 配接方向 | Without |
| 触点数 | 50 | 接触件端接 | :IDC / IDT |
| 位数 | 50 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | PL |
| 系列 | AMP-LATCH | 产品特性 | Feed Through |
| 产品子类型 | Connectors | 连接类型 | Ribbon Cable |
环境参数
| 工作温度 | -65C to 105C | ||
