点击放大查看

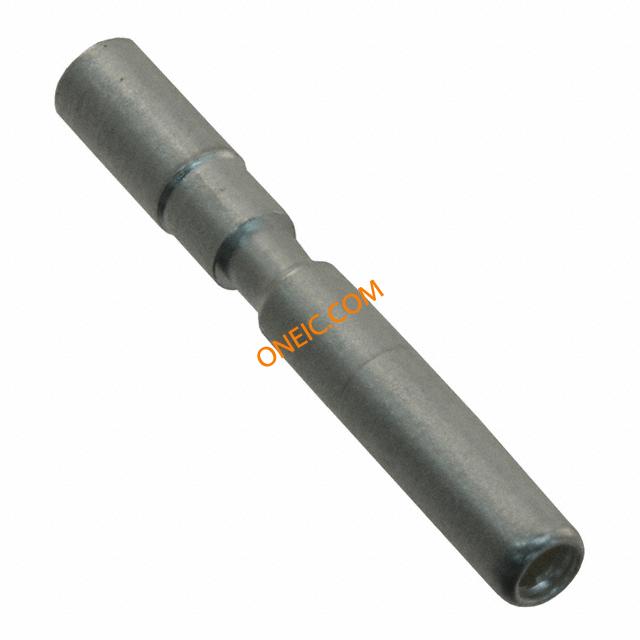

193842-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONTACT CRIMP SOCKET AWG 12-14 Contact socket Universal Mate-n-Lok Power to the Board SOCK TERM 14-12 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketHigh CurrentSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, CRIMP, SOCKET, 14-12AWG CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,2MM,12-14AWG,HIGHCURRENT TE Connectivity Elcon 系列 压接接线端子, 镀金镀镍触点 SKT ASSY., 2MM, 12-14 AWG |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 31 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 3.78 mm | 间距 | Not Required mm |
| 重量 | 0.00159 | 包装方式 | Bulk |
| 导线线规 | 12-14 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Power |
| 接触镀层 | Silver Over Nickel | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Not Required |
| 总长度 | 27.9 mm | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 接触镀层厚度 | 200µin (5.08µm) |
| 线规或范围 - AWG | 14-12 | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | MATE-N-LOK II | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :Universal MATE-N-LOK II Series Housing Connectors |
