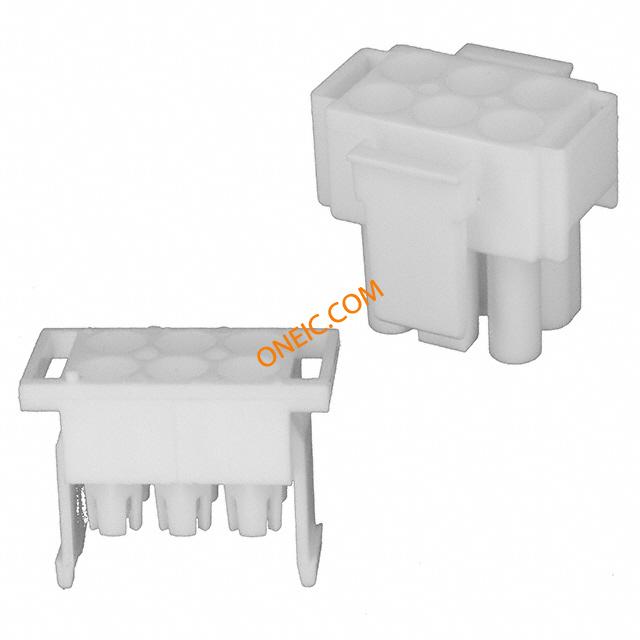

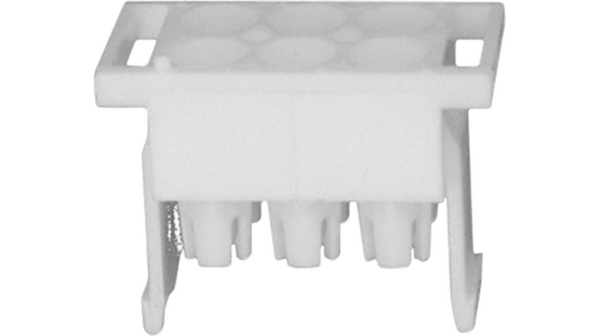

770020-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,6Way Pin & Socket Connectors 6 MATRIX PLUG Conn Housing PL 6 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;6;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 770020-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 2 行 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNLII IN-LNE PLUG HSG KIT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| UL等级 | 获得认可 | 零件状态 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 是 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 测试电压 | 5000 | 额定电压 | 600 V |
| 极数 | 6 | 供电电压 | 600 |
| 最大额定电流 | 31 A | 绝缘电阻 | 1000 MOhm |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
机械参数

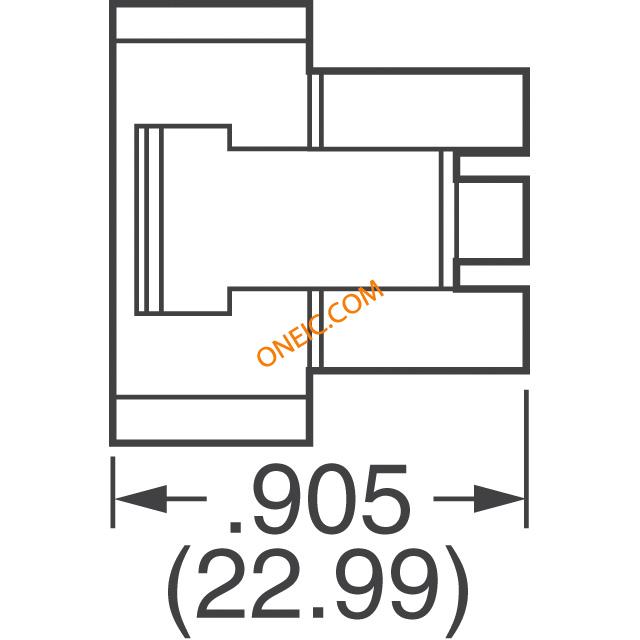

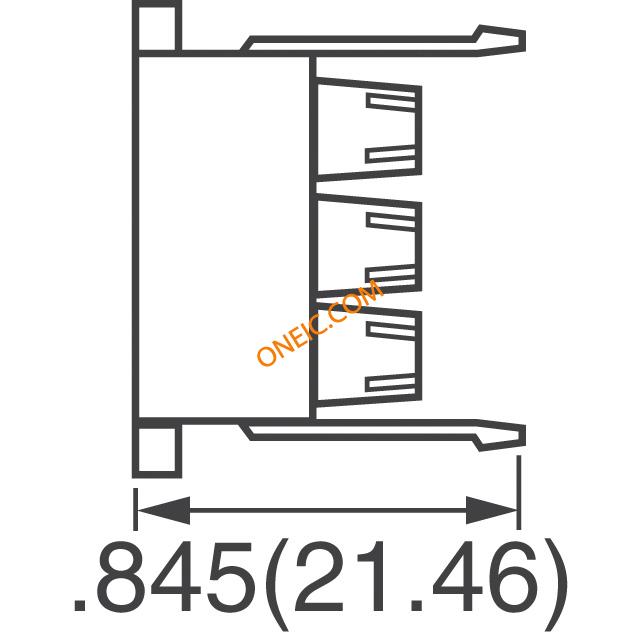

| 颜色 | White | 深度 | 22.99mm |

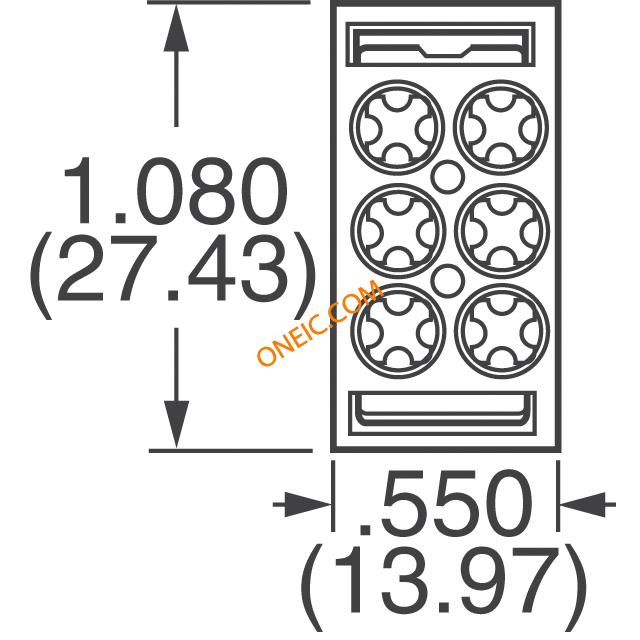

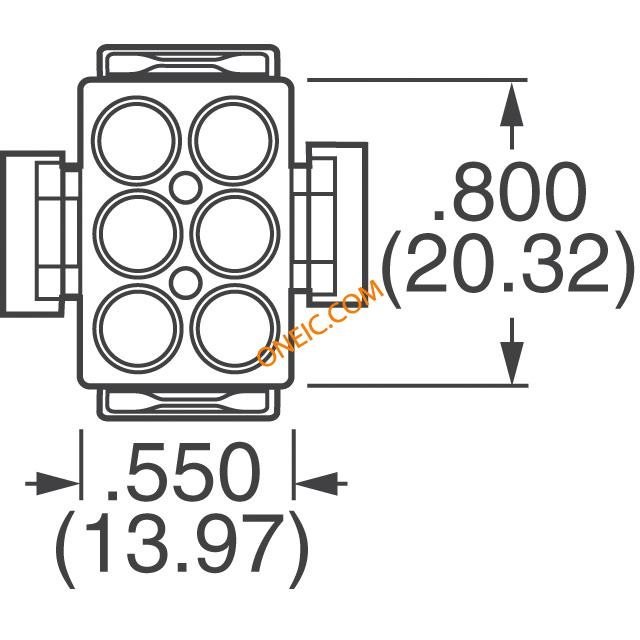

| 间距 | 6.35 mm | 宽度 | 13.97 |
| 长度 | 22.99 | 密封型 | Not Sealed |
| 包装方式 | Bulk | 壳体颜色 | 白色 |
| 导线线规 | 10-30 AWG | 方向 | 直 |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male or Female |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 封装形式 | Plug | 壳体材料 | Nylon |
| 包装数量 | 1 | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 第一连接器极性 | Male / Female | 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 连接器 |
| 典型触点布局 | 矩阵 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Plug Housings |
| 连接方式 | Wire-Board | 装配配置 | Without |
| 适用产品/相关产品 | Universal MATE-N-LOK II Connector | ||
