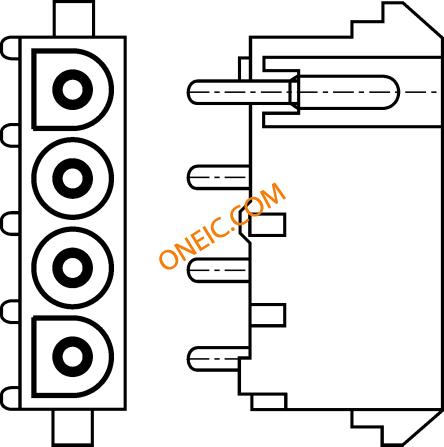

点击放大查看

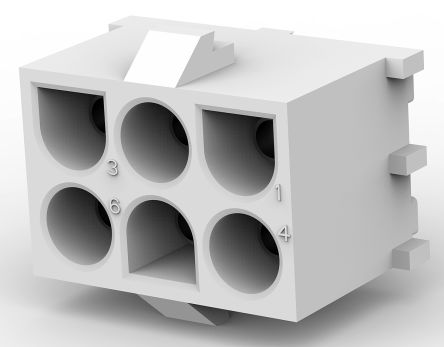

350827-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN MATE-N-LOK 6 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors 6 POS STD TAIL SOCKT Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, SOCKET, 6WAY Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;6;Nylon Socket; wire-board; female; 6.35mm; PIN:6; tinned; Pin layout:2x3 TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 6路 直 印刷电路板插座, 焊接端接, 19A , 通孔 06P UMNL HDR ASSY PC 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-2 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac/dc |
| 接触电阻 | :3.5mohm | 最大额定电流 | 19A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Natural | 深度 | 13.97 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.004 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 方向 | straight |
| 排间距 | 0.250" (6.35mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 柱间距 | 6.35mm |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 锁定特性 | lock | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 20.32 mm |
| 包装数量 | 41 | 连接器 - 电缆 | socket |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :White |
| 触点数 | 6 | 接触件端接 | :Through Hole Vertical |
| 位数 | 6 | 安装孔直径 | :1.8mm |
| 触点材料 - 镀层 | tinned | 第一连接器安装特征 | 2x3 |
产品信息
| SPG | 41 | 类型 | Power |
| 连接器性别 | SKT | 系列 | MATE-N-LOK |
| 产品子类型 | Receptacle Housings | 适配器系列 | Universal MATE-N-LOK |
| 端口数 | 1 Port | 单元数量 | 1 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
