2-480704-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG HSG 6POS UMNL NATL Power to the Board 6P PLUG HOUSING NAT Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL PLUG HSG NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | Plug | 面板厚度 | .03 – .09 |
| 壳体材料 | Polyamide (PA) | 包装数量 | 1 |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 母端或公端 |
| 典型触点布局 | 矩阵 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Housings |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
相关型号
350711-1
te connectivity / amp
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN MATE-N-LOK 6 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 6 POS STD TAIL PIN Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, VERTICAL, DUAL ROW, 6WAY, 6.35MM Conn;Header;Plug;6Pos;UnivMATE-N-LOK;Vertical;White 6WPCBPINHEADERS Socket; wire-board; male; 6.35mm; PIN:6; tinned; Pin layout:2x3 TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 6路 直 PCB 针座, 焊接端接, 19A , 通孔 06P UMNL PIN HDR ASSY 94V0
350989-4
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN Power to the Board 6P UMNL HDR ASSY CONN HEADER 6POS 06P UMNL HDR ASSY LNG/TL

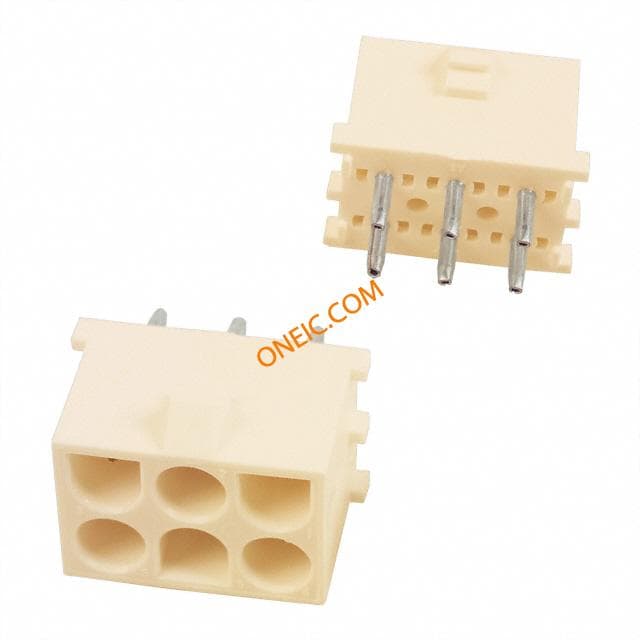

350585-4
te connectivity / amp
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Power to the Board HDR PIN 2X03C VRT V2 Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL PIN HDR ASSY V2 LF
350827-1
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN MATE-N-LOK 6 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors 6 POS STD TAIL SOCKT Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, SOCKET, 6WAY Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;6;Nylon Socket; wire-board; female; 6.35mm; PIN:6; tinned; Pin layout:2x3 TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 6路 直 印刷电路板插座, 焊接端接, 19A , 通孔 06P UMNL HDR ASSY PC 94VO
350431-2
te connectivity / amp
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 AU Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOK;6;Nylon;Natural;19A;600VAC
350762-5
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Pin & Socket Connectors 6P HDR ASSY PC 06P UMNL HDR ASSY PC LF
350827-2
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 AU Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
350732-4
te connectivity / amp
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Power to the Board HDR PIN 2X03C VRT V0 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousing Gender = Header - PinWith ContactsContact Gender = PinSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 6WAY 06P UMNL PIN HDR ASSY 94VO LF
1-480705-2
te connectivity / amp
Conn Housing RCP 6 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 6POS 94V-2 RED Power to the Board CAP HOUSE 6 POS RED UL94V-2 06P UNML CAP HSG RED 06P UNML CAP HSG RED Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
641969-1
te connectivity / amp
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Pin & Socket Connectors 6P PIN HEADER Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL PIN HDR ASSY V2 NATL
350762-4
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN Pin & Socket Connectors 6 POS STD TAIL SOC Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 6POS, 6.35MM Connector,SoftShell;UniversalMATE-N-LOK;6;Nylon;Natural;19A;600VAC Socket header Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 350762-4, TE Connectivity 06P UMNL HDR ASSY PC
794714-1
te connectivity / amp
Conn Housing RCP 6 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP RCPT 6POS UMNL FLANGE Housing,cap,Mate-n-lok,2 row,6 Way,panel Power to the Board FLANGED CAP HSG 6P UL94V-2 Conn Housing RCP 6 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Housing;UniversalMATE-N-LOK;6;19;600;Receptacle(Cap);Nylon;Natural Receptacle housing Pitch6.35 mm Poles 6 Double row / for panel mount / twist lock MATE-N-LOK Universal, 794714-1, TE Connectivity 06P UMNL CAP HSG NATL,PAN MNT
1-480705-1
te connectivity / amp
Conn Housing RCP 6 POS 6.35mm Crimp ST Cable Mount Individual CONN CAP 6POS UNIV-M-N-L BROWN Power to the Board CIRCULAR CONN 5MM MALE ASSY 3P Conn Housing RCP 6 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingHousing Gender = ReceptacleNot PreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL CAP HSG BRN
350711-4
te connectivity / amp
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Power to the Board HDR PIN 2X03C VRT V0 Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, MALE, 6WAY 06P UMNL PIN HDR ASSY 94VO LF

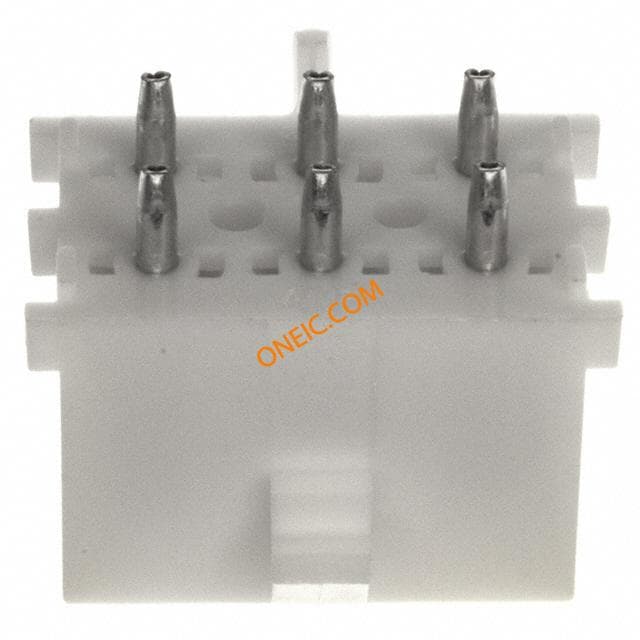

643424-3
