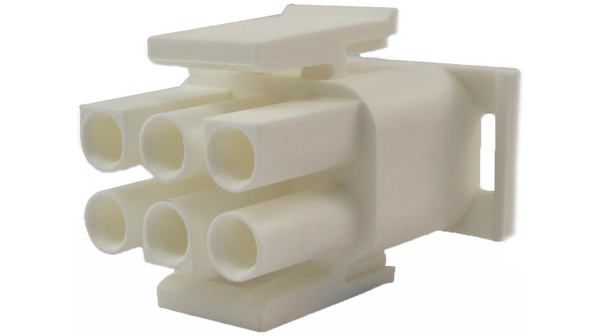

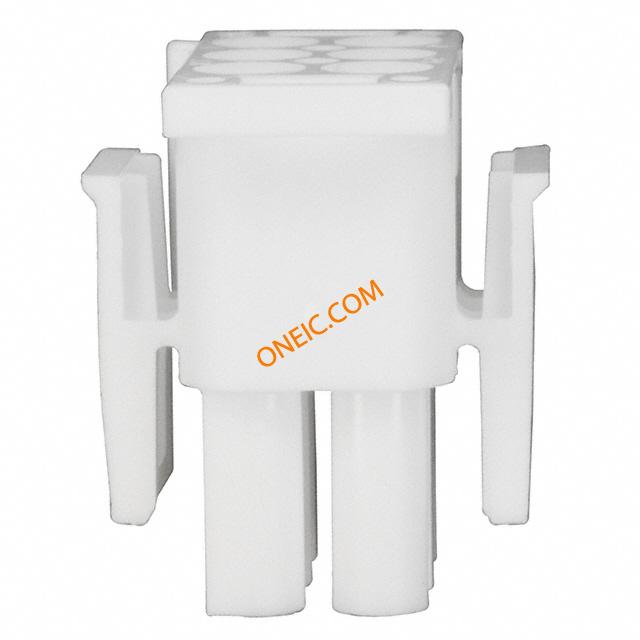

350715-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-0 UNI-MATE 6 way white plug housing Pin & Socket Connectors PLUG HOUSE. 6 POS. Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, DUAL ROW, 2 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;6;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:6; 600V Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 350715-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 2 行 6.35mm 节距 6 路 直 公 电缆安装 压接连接器外壳 06P UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | sealable |
机械参数
| 颜色 | Natural | 深度 | 27.3mm |
| 间距 | 6.35 mm | 长度 | 27.43mm |
| 重量 | 0.004 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 导线线规 | 10-30 AWG |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 锁定特性 | lock |
| 材料表面处理 | :- | 壳体材料 | Nylon |
| 总长度 | 27.43 mm | 包装数量 | 20 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 第一连接器安装特征 | 2x3 |
产品信息
| SPG | 20 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacle Housings | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | Centerline Splash Proof/Sealed Connector |
环境参数
| 工作温度 | -55C to 105C | ||
