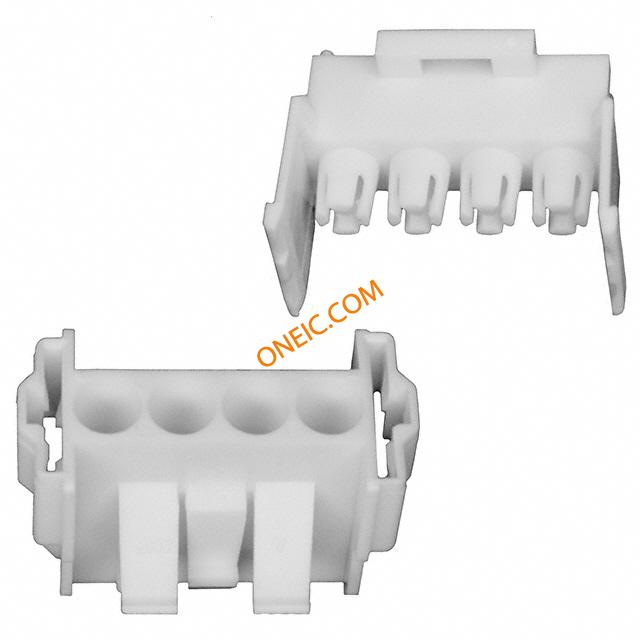

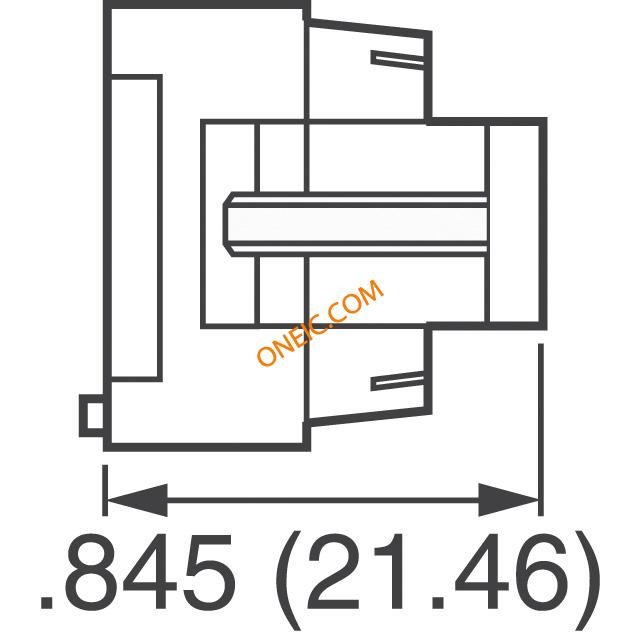

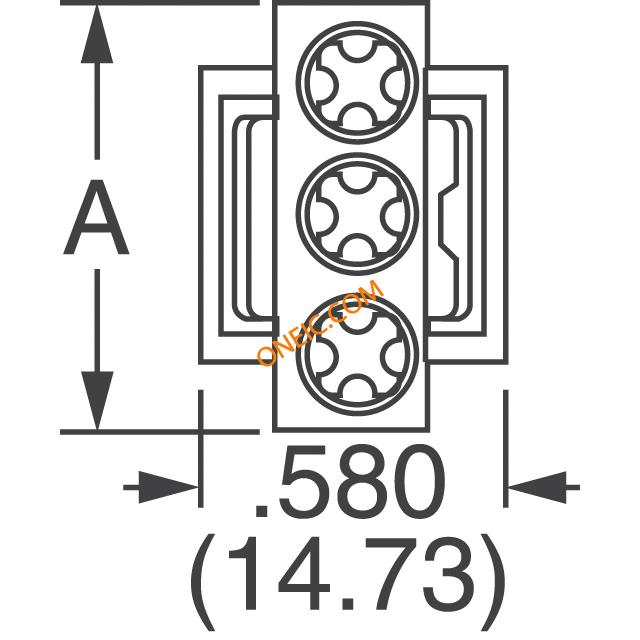

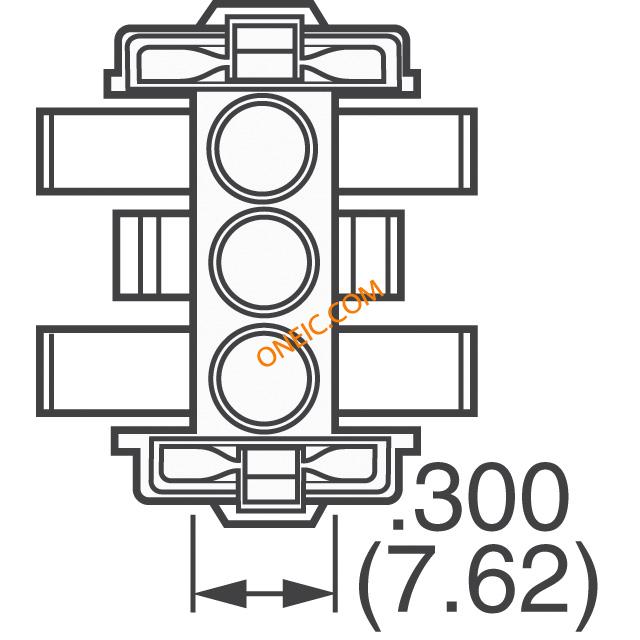

770026-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 6.35mm ST .250" Centerline, 600 V, 19 - 36 A max CONN RECPT/CAP 4POS UMNL-II 2PC Universal MATE-N-LOK II Cap Housing 4P Pin & Socket Connectors 4 IN LINE CAP Conn Housing RCP 4 POS 6.35mm ST Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;UniversalMATE-N-LOKII;4;Receptacle(Cap);Nylon 04P UMNLII IN-LINE CAP HSG KIT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85043180 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 31A |
| 最小供电电压 | 600VAC | ||
机械参数

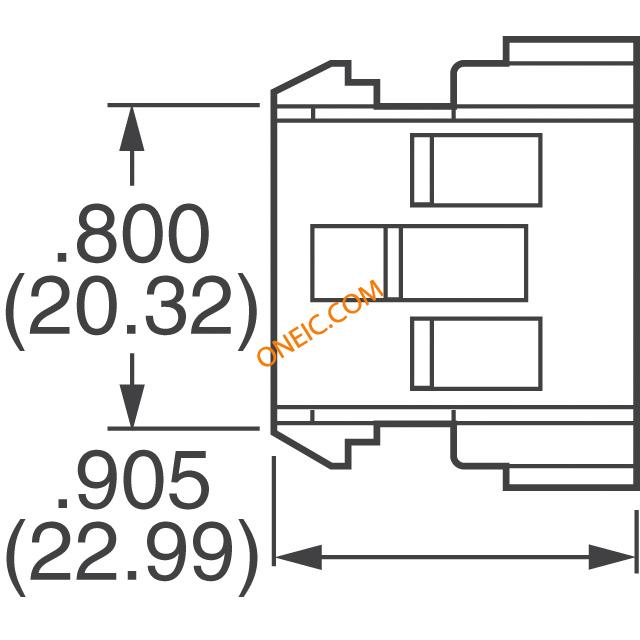

| 颜色 | White | 间距 | 6.35 mm |
| 长度 | 0.905in | 重量 | 0.005 |
| 包装方式 | Bulk | 触头类型 | Male or Female |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Nylon |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 第一连接器安装类型 | :Free Hanging |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK II |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :Universal MATE-N-LOK Connectors |
环境参数
| 工作温度 | -55C to 85C | ||
