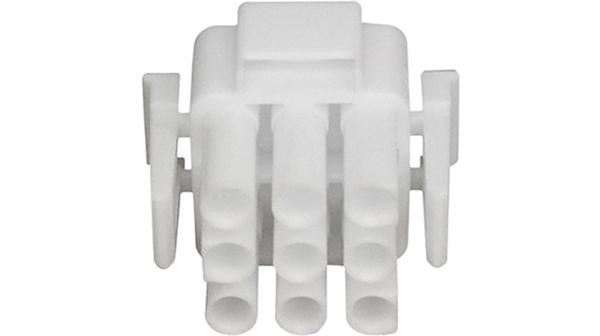

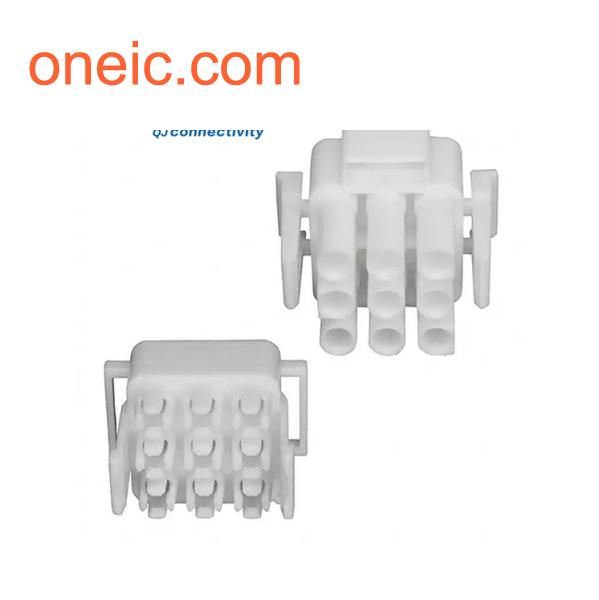

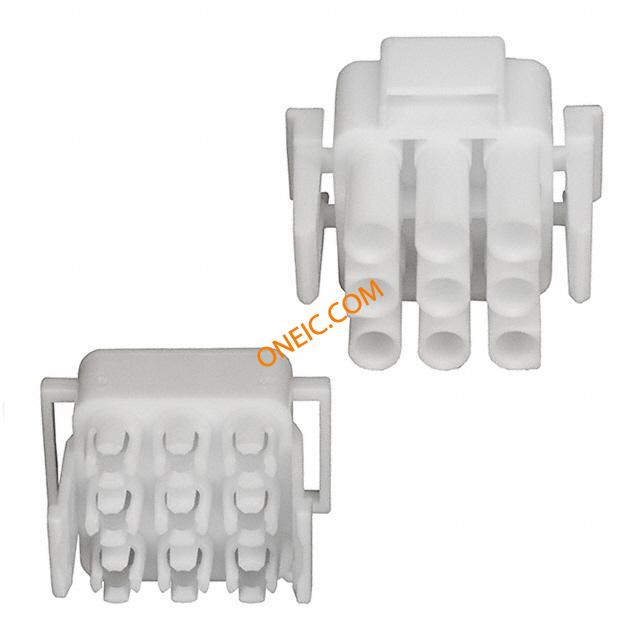

770021-1

点击放大查看

770021-1

制造商
TE Connectivity Ltd.
描述Conn Housing PL 9 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 9POS UMNL-II (2PC) Pin & Socket Connectors 9 MATRIX PLUG Conn Housing PL 9 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;9;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 9 MATE-N-LOK Universal, 770021-1, TE Connectivity 09P UMNLII IN-LNE PLUG HSG KIT
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
UL等级获得认可零件状态E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedUL阻燃等级UL 94V-0
认证机构标志是材料阻燃等级UL 94 V-0

电气参数

测试电压5000额定电压600 V
极数9供电电压600
最大额定电流31 A绝缘电阻1000 MOhm
最小输入电压600VAC最小供电电压600VAC

机械参数

颜色White深度22.99 mm
间距6.35 mm宽度20.32
长度22.99密封型Not Sealed
包装方式Bulk壳体颜色白色
导线线规10-30 AWG排间距0.250" (6.35mm)
重量（g）2.3触头类型Male or Female
外壳颜色White安装类型Straight
连接器类型Plug接触镀层Without
紧固类型Latch Lock排数3
封装形式Plug壳体材料Nylon
包装数量1触点数9
接触件端接Crimp位数9
第一连接器极性Male / Female兼容外壳尺寸（如TM-700等）通用 MATE-N-LOK 连接器
典型触点布局矩阵

产品信息

名称塑壳备注Contacts Not Provided
类型Housing单位PCS
连接器性别PL系列MATE-N-LOK Universal
数量250.0产品子类型Plug Housings
连接方式Wire-Board制造国家墨西哥
装配配置Without设备部件号770021-1.pdf
最小起订量1

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 120C
