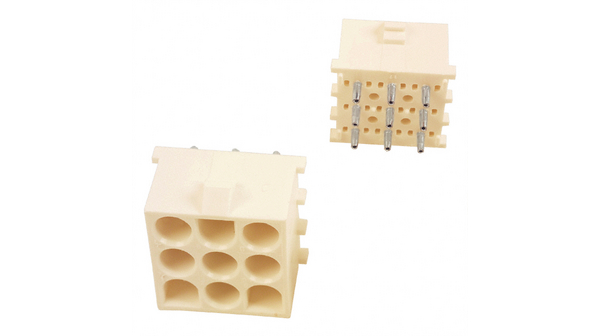

350432-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN MATE-N-LOK 9 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 9 POS STD TAIL PIN Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 9WAY Connector,SoftShell;UniversalMATE-N-LOK;9;Nylon;Natural;19A;600VAC Socket; wire-board; male; 6.35mm; PIN:9; tinned; Pin layout:3x3 Pin header Pitch6.35 mm Poles 9 MATE-N-LOK Universal, 350432-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 9路 直 PCB 针座, 焊接端接, 19A , 通孔 09P UMNL PIN HDR ASSY NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-2 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac |
| 工作电压 | :600V | 接触电阻 | :3.5mohm |
| 介电强度 | :2900V | 最大额定电流 | 19A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 20.32 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.008 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 排间距 | 0.250" (6.35mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :6.35mm | 柱间距 | 6.35mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 3 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 20.32 mm | 包装数量 | 1 |
| 连接器 - 电缆 | socket | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Clear | 触点数 | 9 |
| 接触件端接 | :Through Hole Vertical | 位数 | 9 |
| 安装孔直径 | :1.8mm | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 3x3 | ||
产品信息
| SPG | 1 | 类型 | Power |
| 连接器性别 | HDR | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 端口数 | 1 Port |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
相关型号
350720-4
te connectivity / amp
