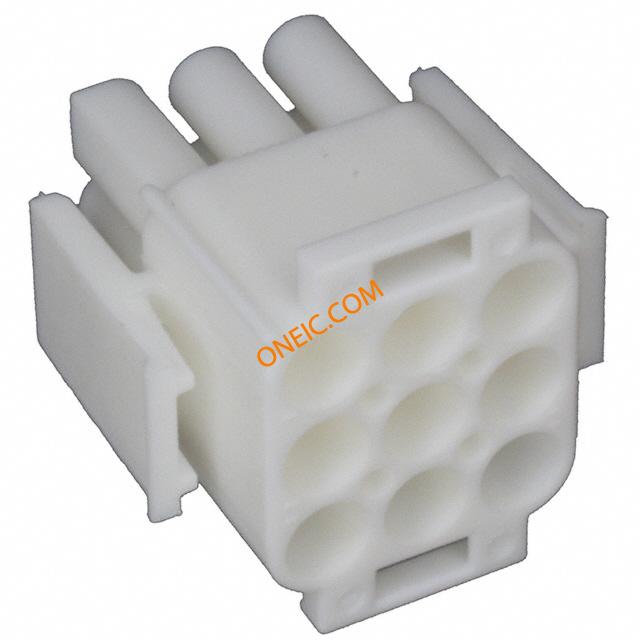

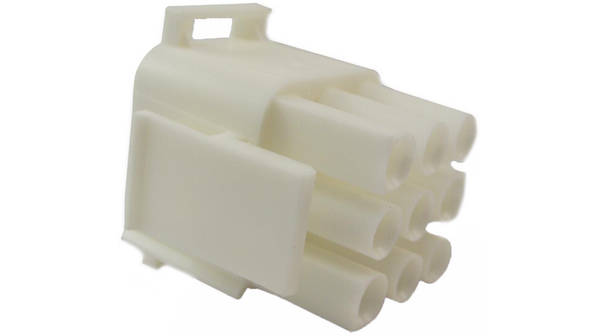

350720-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 9POS 94V-0 UNI-MATE 9 way white plug housing Pin & Socket Connectors PLUG HOUSE 9 POS Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Plug;Nylon;White;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:9 Crimp housing Pitch6.35 mm Poles 9 MATE-N-LOK Universal, 350720-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 9 路 直 公 压接连接器外壳 09P UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 27.31mm |
| 间距 | 6.35 mm | 长度 | 27.43mm |
| 重量 | 0.008 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 导线线规 | 10-30 AWG |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 3 | 锁定特性 | lock |
| 材料表面处理 | :- | 壳体材料 | Nylon |
| 总长度 | 27.43 mm | 包装数量 | 263 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
| 第一连接器安装特征 | 3x3 | ||
产品信息
| SPG | 263 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | 已删除 | Compliant |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 适用产品/相关产品 | Centerline Splash Proof/Sealed Connector | ||
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
1-480707-3
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS UNIV-M-N-L ORANGE
1-350782-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-0 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-0 09P UMNL V0 CAP HSG BLACK 09P UMNL V0 CAP HSG BLACK Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
641971-1
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board 9POS VERT MATE-N-LOK Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;9Pos;UnivMATE-N-LOK;Vertical;Natural 09P UMNL PIN HDR ASSY V2 NATL
1-480707-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG BLK
643426-3
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P SOK HDR ASSY POL Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL SOK HDR ASSY POL LF
1-480707-0
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS 94V-2 UNI-MATE Housing,receptacle,free hanging,9way Pin & Socket Connectors CAP HOUSE 9 POS Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:9; 600V Receptacle housing Pitch6.35 mm Poles 9 Multi row / for panel mount MATE-N-LOK Universal, 1-480707-0, TE Connectivity 09P UMNL CAP HSG NATL
350835-1
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board PCB SOCKET HDR 9P .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHeaderHeader Gender = ReceptaclePreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL HDR ASSY PC 94VO
641972-3
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P PIN HDR ASSY 94V0 Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 9WAY 09P UMNL PIN HDR ASSY 94VO LF
1-480707-2
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 RED Power to the Board CAP HOUSE 9 POS RED UL94V-2 1-480707-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingHousing Gender = ReceptacleNot PreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG RED
1-480707-1
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS 94V-2 UNI-MATE Power to the Board CAP HOUSE 9 POS BROWN UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleNot PreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 09P UMNL CAP HSG BRN
643425-1
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board 9P UMNL HDR ASSY POL Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONN HEADER 9POS 09P UMNL HDR ASSY POL
350586-2
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 AU Power to the Board 9P HDR ASSEMBLY 100 09P UMNL HDR ASSY PC NATL 09P UMNL HDR ASSY PC NATL Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
350586-4
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P HDR ASSY PC NATL 09P UMNL HDR ASSY PC NATL LF
350432-4
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD MATE-N-LOK 9 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors HDR PIN 3X03C VRT V2 Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOK;9;Nylon;Natural;19A;600VAC TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 9路 直 PCB 针座, 焊接端接, 19A , 通孔 09P UMNL PIN HDR ASSY NATL LF

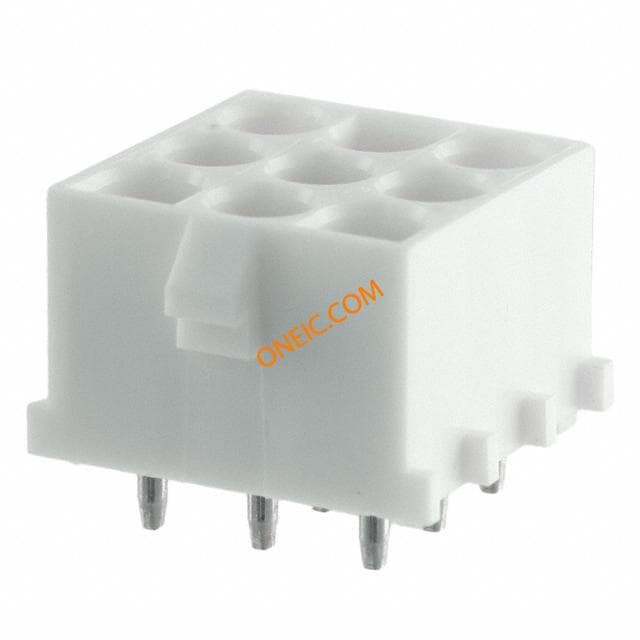

350828-4
