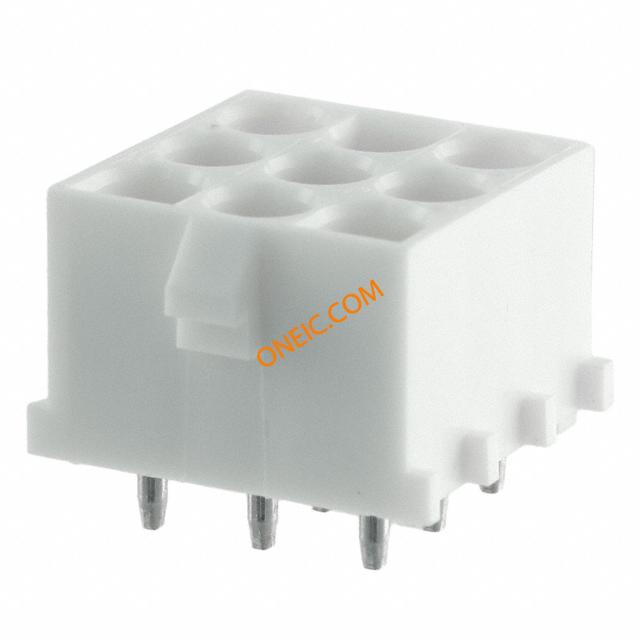

点击放大查看
350828-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board SKT 9 POS 6.35mm Solder ST Thru-Hole .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT UMNL GOLD Pin & Socket Connectors 09P UMNL HDR ASSY PC 94VO LF Conn Mate N Lock RCP 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Conn Mate N Lock RCP 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousing Gender = Header - SocketWith ContactsContact Gender = SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL HDR ASSY PC 94VO LF |
| 分类 |
商业参数
| 其他名称 | 3508284 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | 最大额定电流 | 19/Contact A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 宽度 | 20.32 | 高度 | 14.73 mm |
| 长度 | 20.32 | 密封型 | Not Sealed |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 排间距 | 0.250" (6.35mm) | 端接方式 | Solder |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 引脚间距 | 0.250" (6.35mm) | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | SMD/SMT | 引脚数 | 9 |
| 排数 | 3 | 高度（英寸） | 13.97 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | 100 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Solder Pin | 第一触头极性 | Socket (Female) |
| 触点数 | 9 | 绝缘直径 | 5.08 |
| 位数 | 9 | 外壳尺寸-插件 | 插头 |
| 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 矩阵 |
| 端子柱长度 | 3.18 mm [ .125 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 每排/每行位置数 | All |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | SKT |
| 系列 | Mate-N-Lok | 产品子类型 | Headers |
| 端口数 | 1 Port | 输出配置 | Through Hole |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
