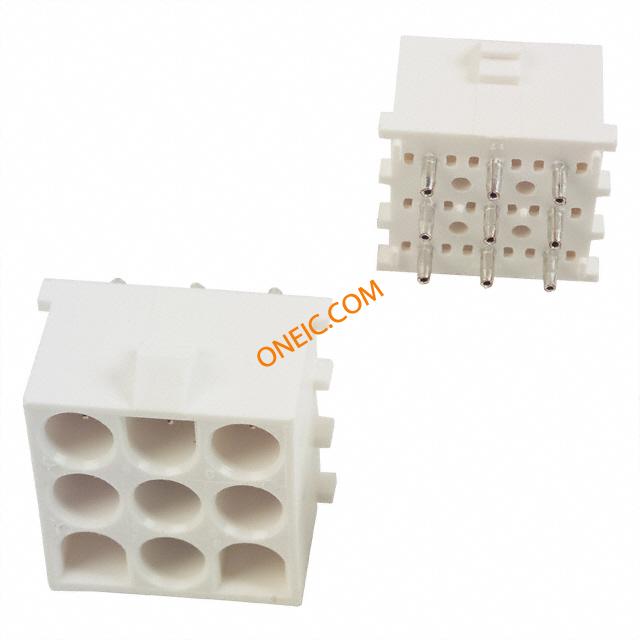

350586-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 AU Power to the Board 9P HDR ASSEMBLY 100 09P UMNL HDR ASSY PC NATL 09P UMNL HDR ASSY PC NATL Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Power to the Board |
| 标准包装数量 | 100 | 工厂包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
机械参数
| 颜色 | Natural | 间距 | 0.250" (6.35mm) |
| 包装方式 | Bulk | 排间距 | 0.250" (6.35mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 3 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 9 | 位数 | 9 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
相关型号
350720-4
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN HOUSING 9POS FREE HANGING Universal mate-n-lok 9w Plug Connector Pin & Socket Connectors 09P PLUG UL94VO Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 9WAY Conn;PlugHsg;9Pos;UnivMATE-N-LOK;White Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:9; 600V Crimp housing 6.35 mm Poles 9 MATE-N-LOK Universal, 350720-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 9 路 直 公 电缆安装 压接连接器外壳 09P UMNL PLUG HSG UL94VO
1-480706-2
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 9POS 94V-2 RED Power to the Board PLUG HOUSE 9 POS RED UL94V-2 Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL PLUG HSG RED
1-480706-1
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 9POS UNIV-M-N-L BROWN Power to the Board PLUG HOUSE 9 POS BROWN UL94V-2 Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 09P UMNL PLUG HSG BRN
1-480706-9
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 9POS 94V-2 BLK Power to the Board PLUG HOUSE 9 POS BLACK UL94V-2 Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL PLUG HSG BLK

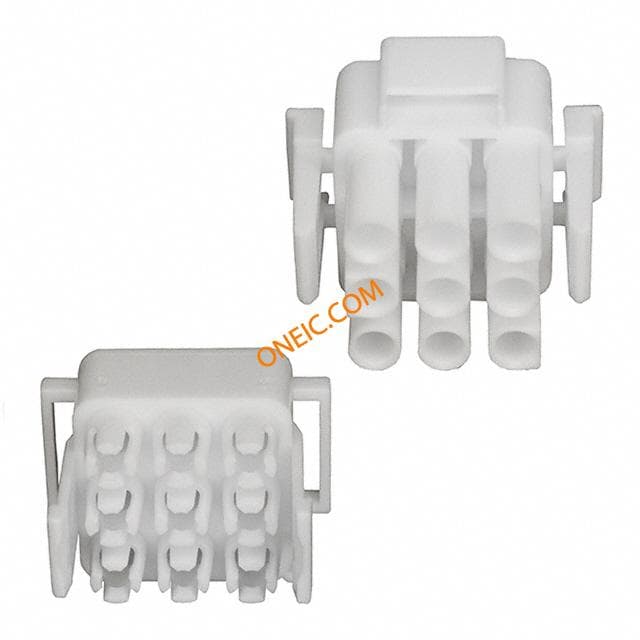

770021-1
