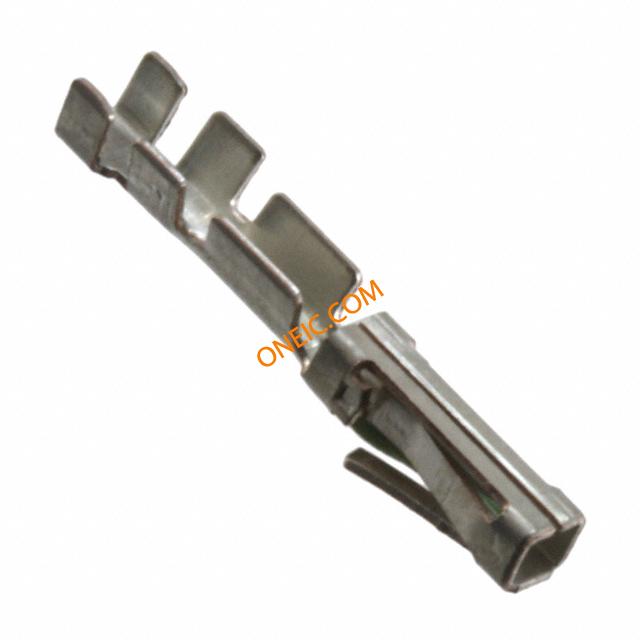

182206-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT SOCKET FOR 280358 MODU tin shrouded crimp 26-22 Headers & Wire Housings MOD 2 TERMINAL Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .89 - 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, 26-22AWG, CRIMP MODUtinshroudedcrimp26-22 Contact; female; 22÷26AWG; AMPMODU MOD II; tinned; 2.54mm TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀锡触点 MOD 2 TERMINAL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 2000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 重量 | 0.001001 | 包装方式 | Bulk |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 柱间距 | 2.54mm |
| 安装类型 | crimped, on cable | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 触头材料 | Phosphor Bronze | 包装数量 | Loose Piece |
| 连接器 - 电缆 | contact | 绝缘高度 | Yes |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 绝缘直径 | 0.89 â 1.55 [0.035 â 0.061] |
| 接触镀层厚度 | 31.5µin (0.80µm) | 线规或范围 - AWG | :26AWG |
| 线规或范围 - mm² | 0.12-0.40² [26-22] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :1.55mm | ||
产品信息
| SPG | 2000 | 连接器性别 | SKT |
| 系列 | Mod II (Italian Range) | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Contact |
| 适配器系列 | AMPMODU MOD II | 连接类型 | Wire |
| 单元数量 | 1 | 适用产品/相关产品 | :AMPMODU Connectors |
环境参数
| 可用温度范围 | -55to+125°C | 结工作温度 | 125°C |
