280366
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 16 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 16POS DL CRIMP 16 way (2x8) MODU crimp socket shell Headers & Wire Housings 2X08 POS RECPT Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE HOUSING, 8X2WAY 16WSOCKETSHELL(2X8) Plug; wire-board; female; PIN:16; w/o terminals; 2.54mm; for cable Crimp housing 2 x 8P, 280366, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2 行 2.54mm 节距 16 路 直 母 PCB 壳体 HOUSING AMPMODU II CONT RECPT |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-1 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 开关功能 | Detent Latching |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 13.7mm |
| 间距 | 2.54 mm | 宽度 | 7.1mm |
| 长度 | 22.3mm | 重量 | 0.094 |
| 材料（通用） | :Thermoplastic (PPO) | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | :Crimp | 柱间距 | 2.54mm |
| 极化 | Latched | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | for cable |
| 排数 | 2 | 封装形式 | Receptacle |
| 锁定特性 | Detent Latching | 触头材料 | :- |
| 壳体材料 | Thermoplastic | 包装数量 | 1,000 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Black |
| 配接方向 | With | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
| 中心触点材料 | 2.54 [.100] | 第一连接器安装类型 | :PC Board |
| 第一连接器安装特征 | 2x8 | ||
产品信息
| SPG | 600 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Mod II (Italian Range) | 预加载 | No |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 产品子类型 | Housing | 适配器系列 | AMPMODU MOD II |
| 单元数量 | 1 | 适用产品/相关产品 | Mod II Double Row Receptacle |
环境参数
| 工作温度 | :+80°C | ||
文档与媒体
相关型号
280385-2
te connectivity / amp
Conn Wire to Board HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DUAL STR GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings 2X08P HDR SHROUDED 15 AU Conn Wire to Board HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16WAYDOUBLEROW(2X8) Socket; wire-board; male; PIN:16; 2.54mm; THT; AMPMODU MOD II PCB header 2 x 8P, 280385-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接 , 通孔 2X8P AMPMODU II SHRD HDR,ST,0.38AU
182206-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT SOCKET FOR 280358 MODU tin shrouded crimp 26-22 Headers & Wire Housings MOD 2 TERMINAL Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .89 - 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, 26-22AWG, CRIMP MODUtinshroudedcrimp26-22 Contact; female; 22÷26AWG; AMPMODU MOD II; tinned; 2.54mm TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀锡触点 MOD 2 TERMINAL
280390-2
te connectivity / amp

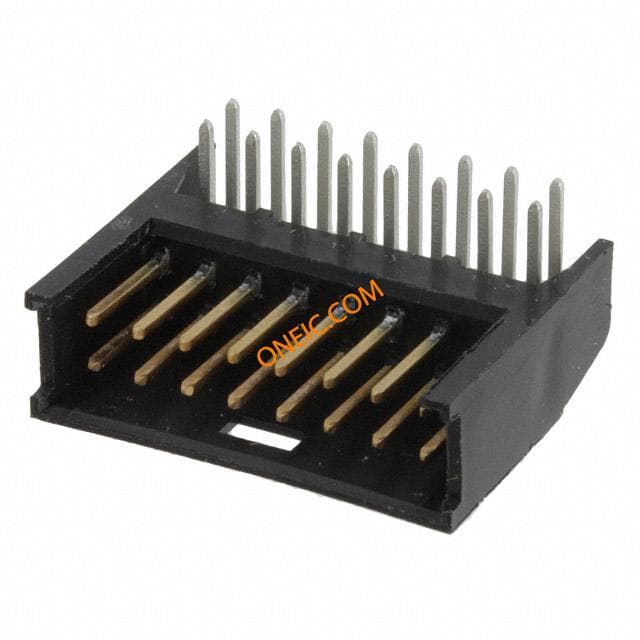

Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DUAL R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 2X08P HDR SHROUDED R/A 15 AU Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16way2row,(2x8),r/ashroudedheader Socket; wire-board; male; PIN:16; 2.54mm; THT; AMPMODU MOD II PCB header 2 x 8P, 280390-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 2X8P MODU II SHRD HDR,RT ANG,0.38AU
181270-2
te connectivity / amp
Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT RCPT CRIMP 26-22AWG GOLD Mod II Crimp Terminal, Gold, 26-22 AWG Headers & Wire Housings MOD II CONTACT LP RCPT 26-22 AWG 15 AU Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.65 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, AWG26-22 Crimpterminal,26-22awg Contact; female; 22÷26AWG; AMPMODU MOD II; gold plated; crimped Crimp socket 3 A Female 26...22 AWG, 181270-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD II CONTACT L.P.
825440-8
te connectivity / amp

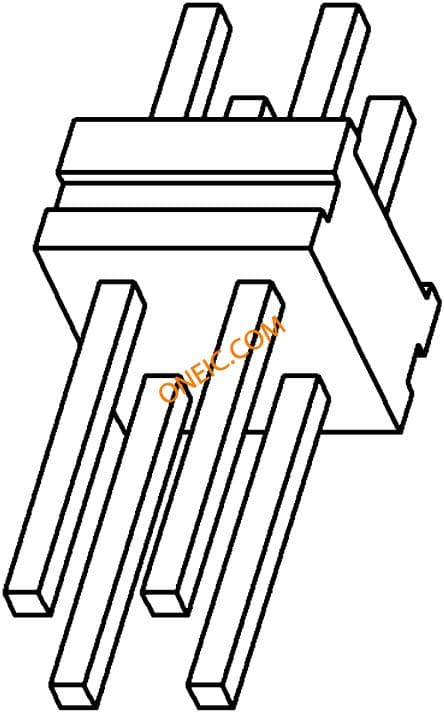

Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DL VERT GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2X08P DUAL ROW OD 2 PINHDR 2X08P. OD 2 PINHDR 2X08P. Search Keywords:board to board, AMPMODU, pcb connectors, HEADER, 2ROW, 16WAY AMPMODU2-economyPCBheader2x8W TE Connectivity AMPMODU Mod II 系列 2.54mm节距 16路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔
