280390-2

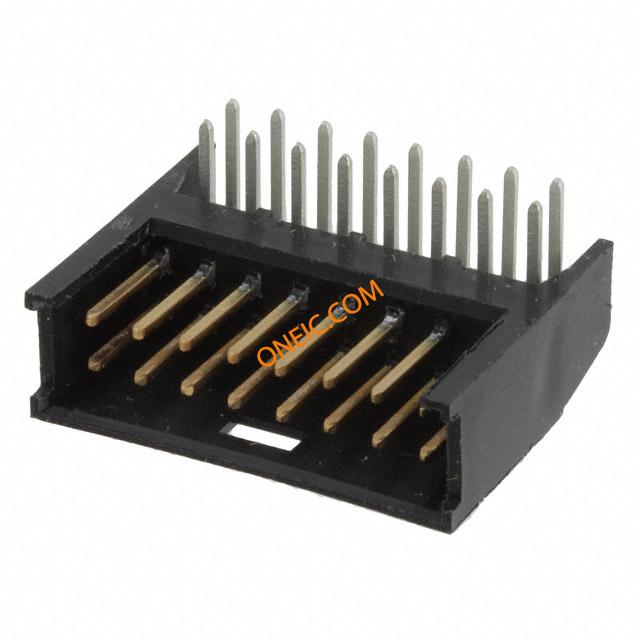

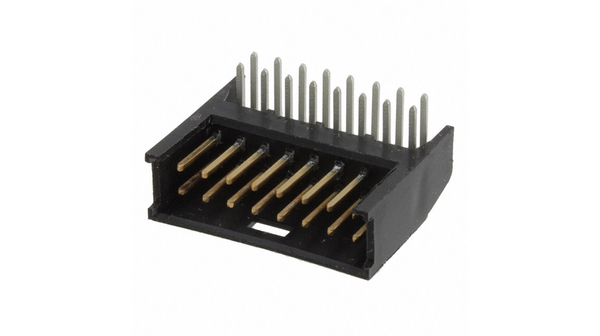

| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DUAL R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 2X08P HDR SHROUDED R/A 15 AU Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16way2row,(2x8),r/ashroudedheader Socket; wire-board; male; PIN:16; 2.54mm; THT; AMPMODU MOD II PCB header 2 x 8P, 280390-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 2X8P MODU II SHRD HDR,RT ANG,0.38AU |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 100 | 极数 | 2 x 8 |
| 开关功能 | Detent Windows | 连接器阻抗 | 制动器窗口 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 750 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 2.59 g | 底座类型 | 不带 |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 引脚样式 | 圆形, 圆形 |
| 轴径尺寸 | .025 | 稳定器 | 不带 |
| 方向 | angled 90° | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 [.100] | 第一连接器 | No |
| 第二连接器 | With | 安装类型 | Right Angle |
| 连接器类型 | Shrouded | 接触镀层 | Gold |
| 安装样式 | 标准 | 排数 | 2 |
| 封装形式 | 3-Sided | 外壳材料（壳体） | 3- 面 |
| 连接器样式 | 90° | 插入件材料 | 黄铜 |
| 锁定特性 | Detent Windows | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic Glass Reinforced |
| 安装特性 | Without | 包装数量 | 500 |
| 面板安装类型 | Without | 主要材料 | WiretoBoard |
| 端接排数 | 焊接 | 连接器 - 电缆 | socket |
| 端接样式 | Through Hole | 第一连接器类型 | 带罩 |
| 第一触头极性 | Pin (Male) | 触点数 | 16 |
| 端接表面处理 | 带有 | 位数 | 16 |
| 第一连接器极性 | Male | 连接器 - AC输入 | 0.4 µm Au |
| 柱体长度（配合） | 6.6 mm | 安装孔直径 | 带有 |
| 接触长度 - 配合 | 6.60 [0.260] | 表面贴装焊盘尺寸 | No |
| 端子柱长度 | 3.50 [0.138] | 接触镀层厚度 | 15µin (0.38µm) |
| 触点材料 - 镀层 | gold plated | 静电放电屏蔽 | 不带 |
| 第一连接器安装特征 | 2x8 | ||
产品信息
| 制造商 | 1.65 | SPG | 27 |
| 类型 | Wire to Board | 设计类型 | Pin strip, double row 90° |
| 连接器性别 | HDR | 系列 | AMPMODU |
| 覆盖范围 | 覆盖 | 钥匙类型 | 否 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Header | 适配器系列 | AMPMODU MOD II |
| 放大器类型 | 22.9 | 单元数量 | 1 |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | No |
| 防护等级 | 带罩 | 工作温度 | -55 â +105 |
| 结工作温度 | 否 | ||
文档与媒体
相关型号
926476-8
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings HSG RECPT 2X08P .100 AMPMODU Headers, Housings & Contacts CONN RCPT 16POS DL .100 CRIMP Connector,8way skt shell double row Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 2X8WAY 8WSKTSHELLD/R Crimp housing Pitch2.54 mm Poles 16 Double row / straight AMPMODU MOD IV, 926476-8, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 连接器外壳 MOD 4 HSG
280366
TE Connectivity AMP Connectors

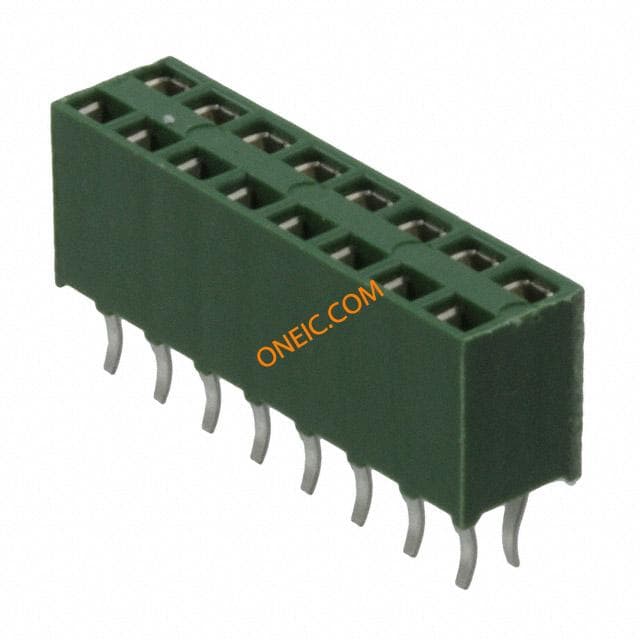

Conn Housing RCP 16 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 16POS DL CRIMP 16 way (2x8) MODU crimp socket shell Headers & Wire Housings 2X08 POS RECPT Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE HOUSING, 8X2WAY 16WSOCKETSHELL(2X8) Plug; wire-board; female; PIN:16; w/o terminals; 2.54mm; for cable Crimp housing 2 x 8P, 280366, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2 行 2.54mm 节距 16 路 直 母 PCB 壳体 HOUSING AMPMODU II CONT RECPT
