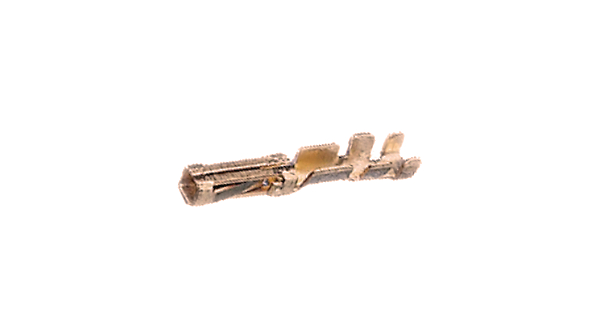

181270-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT RCPT CRIMP 26-22AWG GOLD Mod II Crimp Terminal, Gold, 26-22 AWG Headers & Wire Housings MOD II CONTACT LP RCPT 26-22 AWG 15 AU Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.65 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, AWG26-22 Crimpterminal,26-22awg Contact; female; 22÷26AWG; AMPMODU MOD II; gold plated; crimped Crimp socket 3 A Female 26...22 AWG, 181270-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD II CONTACT L.P. |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | 1812702 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 深度 | 2.2 mm | 重量 | 0.004 |
| 包装方式 | Bulk | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Receptacle |
| 柱间距 | 2.54mm | 基体材料 | Phosphor Bronze |
| 安装类型 | crimped | 插针或插孔 | Socket |
| 电缆直径 | 1.65mm | 连接器类型 | Crimp |
| 接触镀层 | Gold (15) | 安装样式 | for cable |
| 壳体镀层 | Gold | 箔压接区域 | Gold Flash |
| 触头材料 | Phosphor Bronze | 总长度 | 12.65 mm |
| 包装数量 | Loose Piece | 连接器 - 电缆 | contact |
| 绝缘高度 | Yes | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 绝缘直径 | 1.65 [0.065] | 接触镀层厚度 | 16µin (0.40µm) |
| 线规或范围 - mm² | 0.12-0.40² [26-22] | 触点材料 - 镀层 | gold plated |
产品信息
| SPG | 1 | 类型 | Crimp Terminal |
| 连接器性别 | F | 系列 | Mod II (Italian Range) |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Contact | 适配器系列 | AMPMODU MOD II |
| 连接类型 | Wire | 单元数量 | 1 |
| 适用产品/相关产品 | :0.1" AMPMODU Headers, Housings | ||
