280361
| 制造商 | TE Connectivity Ltd. |

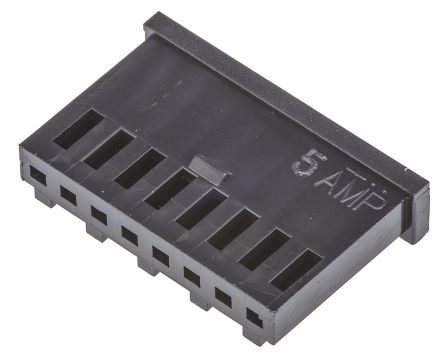

| 描述 | Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount CONN HOUSING RCPT 8POS SL ROW 8 way 1 row MODU crimp socket shell Headers & Wire Housings 8 POS RECPT Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE HOUSING, 8WAY 8WAYSOCKETSHELL Plug; wire-board; female; PIN:8; w/o terminals; 2.54mm; for cable Crimp housing 1 x 8P, 280361, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm 节距 8 路 直 母 电缆安装 PCB 壳体 MOD II HSG, SINGLE ROW 8 POS |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-1 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 开关功能 | Detent Latching |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 4.8mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 13.7mm |
| 高度 | 13.7 mm | 长度 | 22.3mm |
| 重量 | 0.07 | 材料（通用） | :Thermoplastic (PPO) |
| 包装方式 | Bulk | 排间距 | 2.54 mm |
| 端接方式 | :Crimp | 柱间距 | 2.54mm |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | for cable |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | Thermoplastic | 总长度 | 22.3 mm |
| 包装数量 | 1 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Black | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 第一连接器安装类型 | :PC Board | 第一连接器安装特征 | 1x8 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | Female |
| 系列 | AMPMODU | 产品子类型 | Receptacles / Sockets - Housings |
| 适配器系列 | AMPMODU MOD II | 单元数量 | 1 |
| 适用产品/相关产品 | Centerline Mod II Connector | ||
环境参数
| 工作温度 | :+80°C | ||
文档与媒体
相关型号
182206-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT SOCKET FOR 280358 MODU tin shrouded crimp 26-22 Headers & Wire Housings MOD 2 TERMINAL Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .89 - 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, 26-22AWG, CRIMP MODUtinshroudedcrimp26-22 Contact; female; 22÷26AWG; AMPMODU MOD II; tinned; 2.54mm TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀锡触点 MOD 2 TERMINAL
280380-2
te connectivity / amp

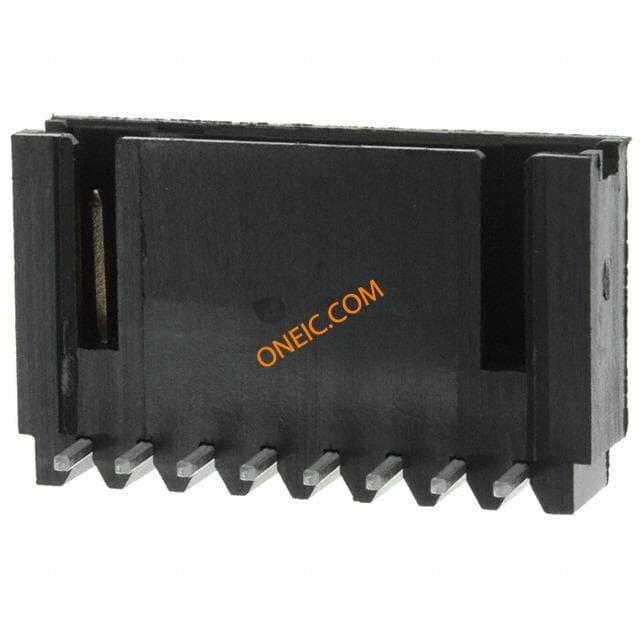

Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 8POS R/A GOLD .100 TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 8P HDR SHROUDED 15AU Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUPLUG8WAYR/A PCB header 1 x 8P, 280380-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 8P MODU II SHRD HDR,RT ANG, 0.38AU
181270-2
te connectivity / amp
Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT RCPT CRIMP 26-22AWG GOLD Mod II Crimp Terminal, Gold, 26-22 AWG Headers & Wire Housings MOD II CONTACT LP RCPT 26-22 AWG 15 AU Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.65 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, AWG26-22 Crimpterminal,26-22awg Contact; female; 22÷26AWG; AMPMODU MOD II; gold plated; crimped Crimp socket 3 A Female 26...22 AWG, 181270-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD II CONTACT L.P.
826629-8
te connectivity / amp

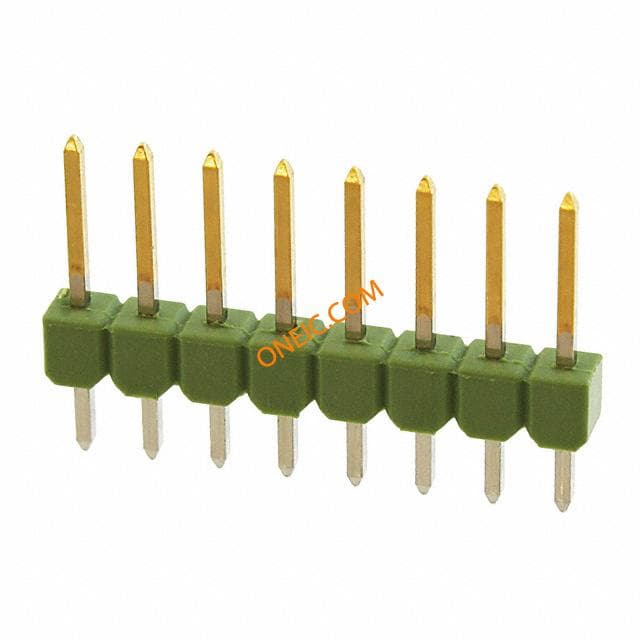

Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAWAY 8POS AU TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 1X08 POS VERT AU Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Breakaway8 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, 1ROW, 8WAY 8wSinglerowstraightheadergold Pin header; pin strips; AMPMODU MOD II; male; PIN:8; straight Pin header 1 x 8P, 826629-8, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 8路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔 AMPMODU II HEADER
280373-1
te connectivity / amp

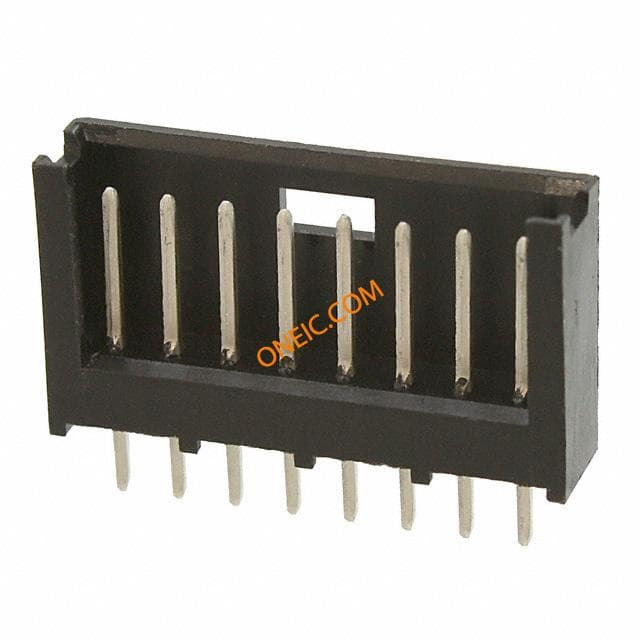

Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Reel .100 inch AMPMODU Headers CONN HEADER SHROUDED VERT 8POS TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 8P HDR SHROUDED TIN Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Reel Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 8WAYSINGLEROWTIN Socket; wire-board; male; PIN:8; 2.54mm; THT; AMPMODU MOD II TE Connectivity AMPMODU Mod II 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接 , 通孔 8P AMPMODU II SHRD HDR, ST, TIN
