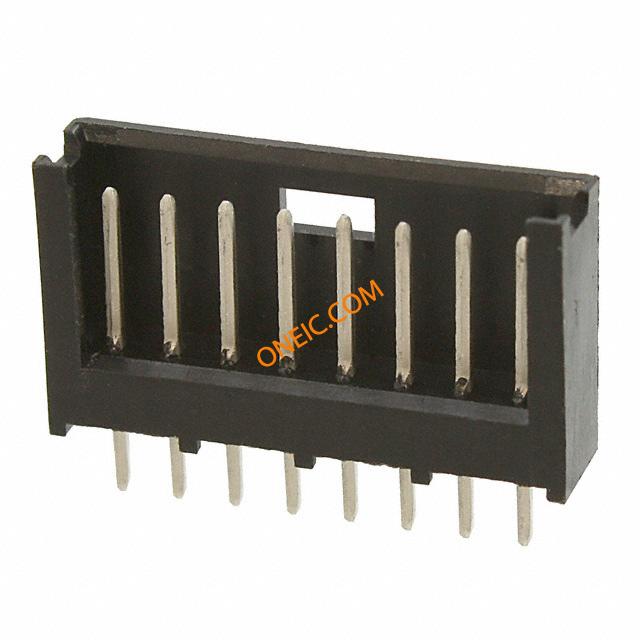

280373-1

点击放大查看

280373-1

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Reel .100 inch AMPMODU Headers CONN HEADER SHROUDED VERT 8POS TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 8P HDR SHROUDED TIN Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Reel Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 8WAYSINGLEROWTIN Socket; wire-board; male; PIN:8; 2.54mm; THT; AMPMODU MOD II TE Connectivity AMPMODU Mod II 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接 , 通孔 8P AMPMODU II SHRD HDR, ST, TIN
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量500

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
标准编号CSA LR7189, UL E28476RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
保护额定电压（VPR）750 V

机械参数

颜色Black深度5 mm
间距2.54 mm高度12.6 mm
重量1.29 g底座类型不带
锁定类型带有包装方式Bulk
壳体颜色黑色引脚样式圆形, 圆形
轴径尺寸.025稳定器不带
方向straight排间距2.54 mm
端接方式Solder触头类型Male Pin
柱间距2.54 [.100]第一连接器No
第二连接器With外壳颜色Black
安装类型Vertical连接器类型Shrouded
接触镀层Tin安装样式Through Hole
排数1封装形式3-Sided
外壳材料（壳体）3- 面插入件材料磷青铜
锁定特性Detent Windows外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic Glass Reinforced
总长度22.9 mm安装特性Without
包装数量Reel面板安装类型Without
端接排数焊接连接器 - 电缆socket
端接样式Through Hole第一连接器类型带罩
第一触头极性Pin (Male)触点数8
端接表面处理带有位数8
柱体长度（配合）6.6 mm安装孔直径带有
接触长度 - 配合6.60 [0.260]表面贴装焊盘尺寸No
端子柱长度3.50 [0.138]接触镀层厚度137.8µin (3.50µm)
触点材料 - 镀层tinned静电放电屏蔽不带
第一连接器安装特征1x8

产品信息

制造商1.65SPG1
类型Wire to Board连接器性别HDR
系列AMPMODU覆盖范围覆盖
钥匙类型否CAD图纸3D CAD Model
制造商全称AMP产品子类型Header
适配器系列AMPMODU MOD II单元数量1
选择性装载No加载位置数All

环境参数

密封等级不带温度No
防护等级带罩工作温度-55 – +105
结工作温度否

文档与媒体

在线文档
280373-1?RQPN=280373-1
在线文档
280373-1

相关型号

182206-2

182206-2

te connectivity / amp

Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT SOCKET FOR 280358 MODU tin shrouded crimp 26-22 Headers & Wire Housings MOD 2 TERMINAL Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .89 - 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, 26-22AWG, CRIMP MODUtinshroudedcrimp26-22 Contact; female; 22÷26AWG; AMPMODU MOD II; tinned; 2.54mm TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀锡触点 MOD 2 TERMINAL

¥1.7745
详情
280361

280361

TE Connectivity AMP Connectors

Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount CONN HOUSING RCPT 8POS SL ROW 8 way 1 row MODU crimp socket shell Headers & Wire Housings 8 POS RECPT Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE HOUSING, 8WAY 8WAYSOCKETSHELL Plug; wire-board; female; PIN:8; w/o terminals; 2.54mm; for cable Crimp housing 1 x 8P, 280361, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm 节距 8 路 直 母 电缆安装 PCB 壳体 MOD II HSG, SINGLE ROW 8 POS

¥1.4280
详情
181270-2

181270-2

te connectivity / amp

Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT RCPT CRIMP 26-22AWG GOLD Mod II Crimp Terminal, Gold, 26-22 AWG Headers & Wire Housings MOD II CONTACT LP RCPT 26-22 AWG 15 AU Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.65 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, AWG26-22 Crimpterminal,26-22awg Contact; female; 22÷26AWG; AMPMODU MOD II; gold plated; crimped Crimp socket 3 A Female 26...22 AWG, 181270-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD II CONTACT L.P.

¥2.2557
详情
215297-8

215297-8

te connectivity / amp

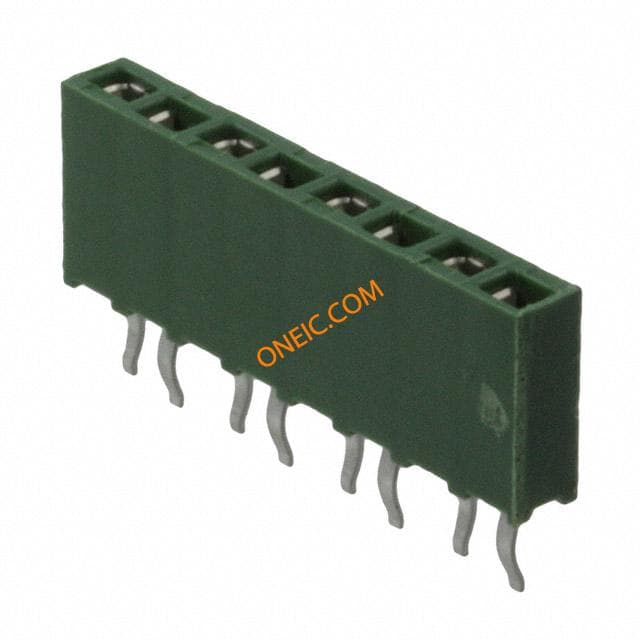

Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 8POS .100 VERT T/H TE Connectivity 2.54mm 8 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 8P RECPT VERT HV-100 Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleHV-100Number of Positions = 8Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, SOCKET, VERTICAL, 1ROW, 8WAY 1x8wayverticalreceptacleMODU Socket; pin strips; HV-100; female; PIN:8; straight; 2.54mm; THT Female header 1 x 8P, 215297-8, TE Connectivity TE Connectivity AMPMODU HV100 系列 8路 直 2.54mm节距 通孔 印刷电路板插座, 插座板 8P HV100 REC CON. TE, 7.0MM
